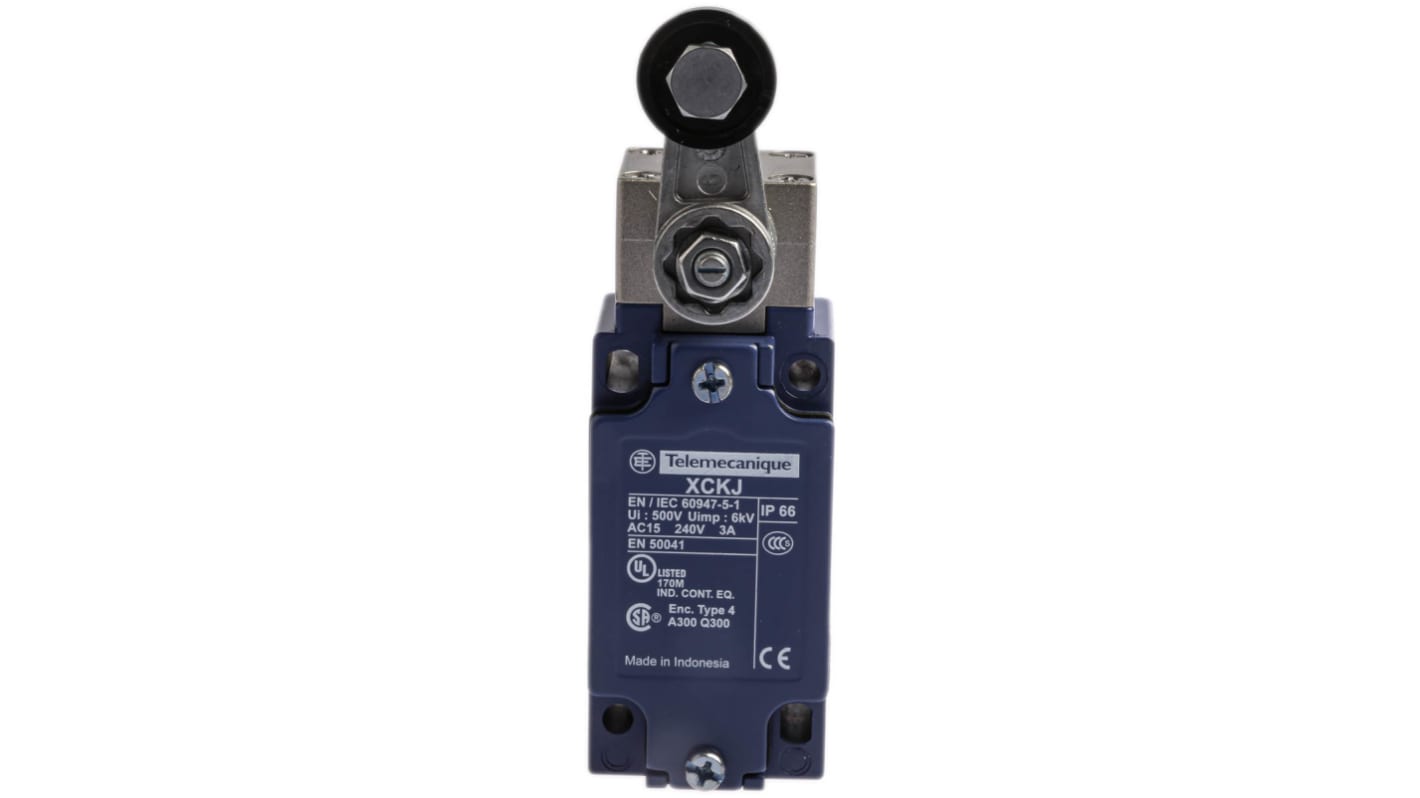

Schneider Electric / Telemecanique XC Standard Limit Switch — Rotary Roller Lever — 1 NC + 1 NO — IP66
Schneider Electric / Telemecanique · Schneider Electric
SCHNEIDER LIMIT SWWITCH
- KEW code
- XCK-J10511
- Brand
- Schneider Electric / Telemecanique
- Manufacturer
- Schneider Electric
- MPN
- XCKJ10511
- Category
- Control Gear
- Specification
- - Brand family: Telemecanique / Schneider Electric XC Standard. - Manufacturer code: XCKJ10511. - Product type: Limit switch. - Sensor design: Form A to CENELEC EN 50041. - Body type: Fixed. - Head type: Rotary head. - Operator: Spring return thermoplastic roller lever. - Approach: Lateral approach, 1 or 2 programmable directions. - Body material: Zamak metal. - Contact configuration: 1 NC + 1 NO. - Contact operation: Snap action. - Cable entry: Pg 13.5 cable gland entry, 9 to 12 mm cable outer diameter. - Connection: Screw-clamp terminals, 1 x 0.34 to 2 x 1.5 mm2. - Rated operational current: 3 A at 240 V AC-15; 0.27 A at 250 V DC-13. - Thermal current: 10 A. - Ip rating: IP66. - Ik rating: IK07. - Dimensions: 40 x 77 x 44 mm. - Operating temperature: -25 to 70 C. - Standards: IEC 60947-5-1, CENELEC EN 50041, UL 508.
- Feature
- Rotary roller-lever actuator for cam or lever-operated detection.
- Feature
- Metal body and head for industrial environments.
- Feature
- 1 NC + 1 NO snap-action contacts.
- Feature
- IP66 protection with screw-clamp terminals.
