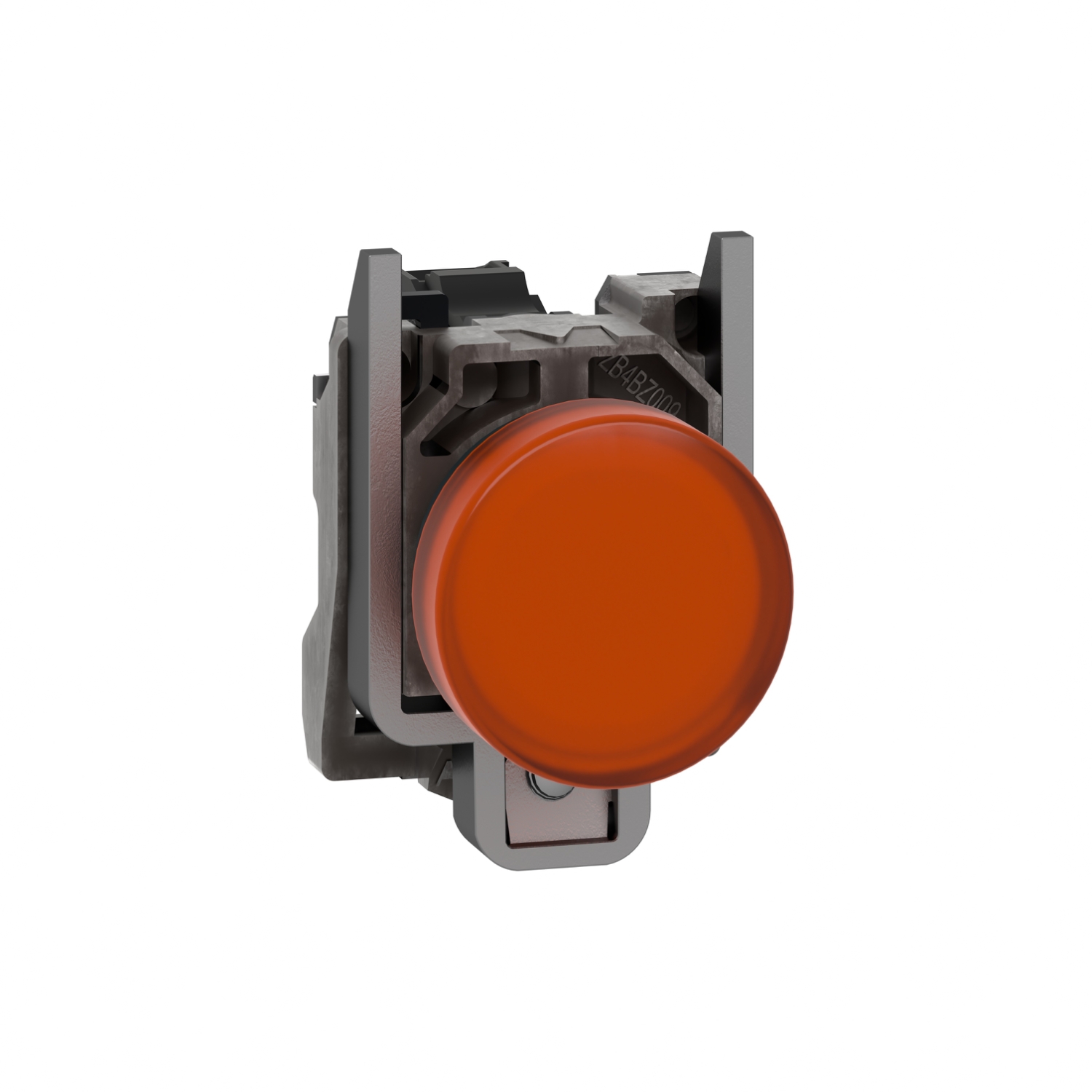

Schneider Electric Harmony XB4 Complete Pilot Light — Orange — 230–240 V AC — IP66
Schneider Electric · Schneider Electric
Schneider Electric Harmony XB4 complete orange LED pilot light for control panels and machinery. It fits a standard 22.5 mm panel opening, uses a 230-240 V AC supply and provides steady status indication through a plain orange lens. Schneider's current English colour is orange and the exact reference is a pilot light, not a push button; the X-Line description remains unchanged as the source-system record.
- KEW code
- XB4-BVM5
- Brand
- Schneider Electric
- Manufacturer
- Schneider Electric
- MPN
- XB4BVM5
- Category
- Control Gear
- Specification
- Schneider Electric Harmony XB4 complete pilot light. Orange plain lens with integral universal LED. Rated supply: 230-240 V AC, 50/60 Hz. Panel mounting diameter: 22.5 mm. Chromium-plated metal bezel with screw-clamp terminals. Ingress protection: IP66, IP67, IP69 and IP69K; impact protection IK06.
- Feature
- Orange plain lens with long-life integral LED.
- Feature
- Designed for standard 22 mm control-panel openings.
- Feature
- 230-240 V AC, 50/60 Hz rated supply.
- Feature
- Chromium-plated metal bezel.
- Feature
- Screw-clamp terminals for panel wiring.
- Feature
- IP66, IP67, IP69 and IP69K protection.
