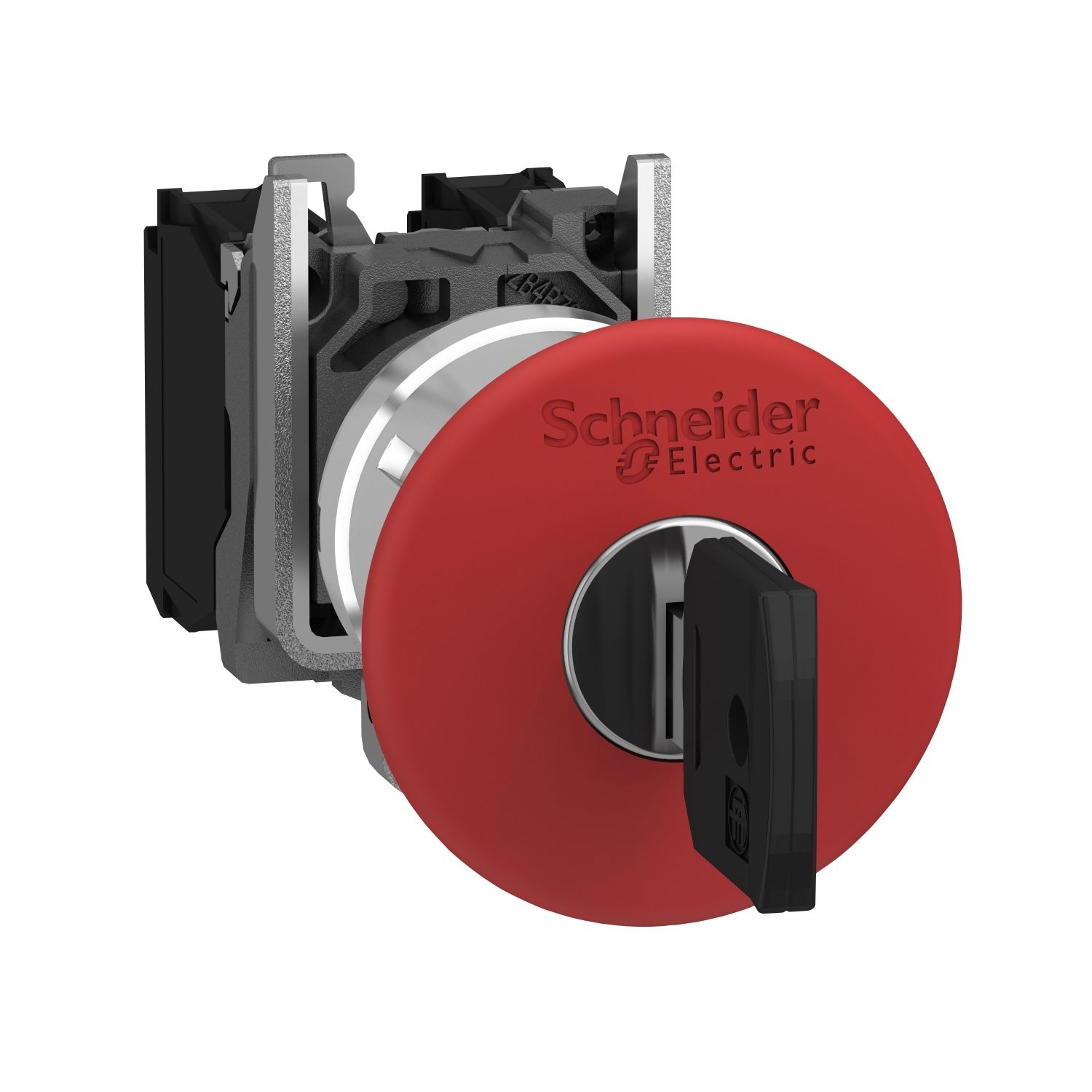

Schneider Electric Emergency stop pushbutton / emergency switching-off pushbutton, 1 NC, IP66
Schneider Electric · Schneider Electric
Harmony XB4 metal emergency stop pushbutton with a red 40 mm mushroom operator for 22 mm panel mounting. The operator uses trigger action with mechanical latching and key release reset, and is supplied as a complete non-illuminated device with one normally closed contact.
- KEW code
- XB4-BS9442
- Brand
- Schneider Electric
- Manufacturer
- Schneider Electric
- MPN
- XB4BS9442
- Category
- Control Gear
- Specification
- - Brand: Schneider Electric. - Range: Harmony XB4. - Mpn: XB4BS9442. - Gtin: 3606480623721. - Product type: Emergency stop pushbutton / emergency switching-off pushbutton. - Mounting diameter: 22 mm / 22.5 mm panel cut-out class. - Operator: Red mushroom, 40 mm, unmarked. - Reset: Key release. - Key type: 455 / Ronis 455. - Contacts: 1 NC. - Contact operation: Slow-break, positive opening. - Connection: Screw clamp terminals. - Bezel material: Chromium plated metal. - Fixing collar material: Zamak. - Dimensions: 47 mm H x 40 mm W x 104 mm D. - Thermal current: 10 A conventional free air thermal current. - Rated insulation voltage: 600 V. - Impulse withstand voltage: 6 kV. - Mechanical durability: 300000 cycles. - Ingress protection: IP66/IP69K from distributor; Schneider shop includes harsh-environment washer resistance.
- Feature
- Complete Harmony XB4 metal emergency stop device
- Feature
- Red 40 mm mushroom actuator is visible on control panels
- Feature
- Trigger latching action with key-release reset
- Feature
- One normally closed contact for stop circuits
- Feature
- Screw clamp terminal connection
