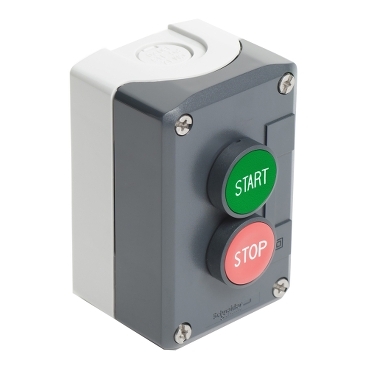

Schneider Electric Complete control station, 1 NO + 1 NC
Schneider Electric
In stock
A compact enclosed Start/Stop station for machinery and control circuits, supplied complete with labelled pushbuttons and contacts.
Complete enclosed Start/Stop control station with two flush 22 mm spring-return pushbuttons. The station has a green START button with 1 NO contact and a red STOP button with 1 NC contact in a polycarbonate enclosure.
- KEW code
- XALD215
- Brand
- Schneider Electric
- Manufacturer
- Schneider Electric
- MPN
- XALD215
- Category
- Control Gear
- Specification
- - Manufacturer: Schneider Electric. - Range: Harmony XALD. - Mpn: XALD215. - Product type: Complete control station. - Function: Start/Stop. - Operators: 2 flush spring-return pushbuttons. - Operator diameter: 22 mm. - Contacts: 1 NO START and 1 NC STOP. - Enclosure material: Polycarbonate. - Base colour: Light grey RAL 7035. - Cover colour: Dark grey RAL 7016. - Thermal current: 10 A. - Rated insulation voltage: 600 V. - Rated impulse withstand voltage: 6 kV. - Mechanical durability: 10000000 cycles. - Terminal type: Screw clamp terminals. - Net weight: 0.233 kg.
- Feature
- Complete enclosed Start/Stop control station
- Feature
- Green START pushbutton with 1 NO contact
- Feature
- Red STOP pushbutton with 1 NC contact
- Feature
- 22 mm flush spring-return operators
- Feature
- Polycarbonate enclosure with screw clamp terminals
