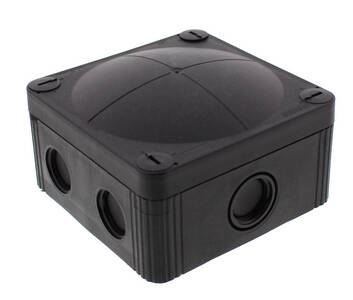

Wiska COMBI 407/5 junction box, 95 × 95 × 60 mm

WISKA

No stock / backorder

Black WISKA COMBI 407 BK junction box with M20 and M25 cable-entry options, measuring 95 × 95 × 60 mm.

The WISKA COMBI 407 BK is a black polypropylene junction box measuring 95 × 95 × 60 mm. It has six M20 threaded membrane entries, a central M20 entry with a knockout to M25 and two rear membrane entries. It provides IP66 with membrane entries and IP67 with a threaded entry and suitable ESKV cable gland.

KEW code

WISKA407/5

Brand

WISKA

Manufacturer

WISKA

MPN

COMBI 407 BK

Category

Enclosures & Boxes

Specification

Product type: Junction box. Manufacturer model: COMBI 407 BK. Dimensions (L × W × H): 95 × 95 × 60 mm. Housing material: Polypropylene (PP). Seal material: Thermoplastic elastomer (TPE). Colour: Black, RAL 9005. Cable entries: 6 × M20 threaded membrane entries; 1 central M20 entry with knockout to M25; 2 rear membrane entries. Protection: IP66 with membrane entries; IP67 with a threaded entry and suitable ESKV cable gland. Rated cross section: 4 mm². Voltage: 690 V. Cable diameter: 3–12 mm. Fixing: Mounting clip or 4 internal openings outside the sealing area. Equipment: 4 captive cover screws and mounting clip. WISKA order no.: 10105601. EAN: 4007686010855. ETIM classification: EC002600.

Feature

95 × 95 × 60 mm black polypropylene junction box.

Feature

Six M20 entries, central M25 knockout and two rear membrane entries.

Feature

IP66 with membrane entries; IP67 with a threaded entry and suitable ESKV cable gland.

Feature

Includes 4 captive cover screws and a mounting clip.
