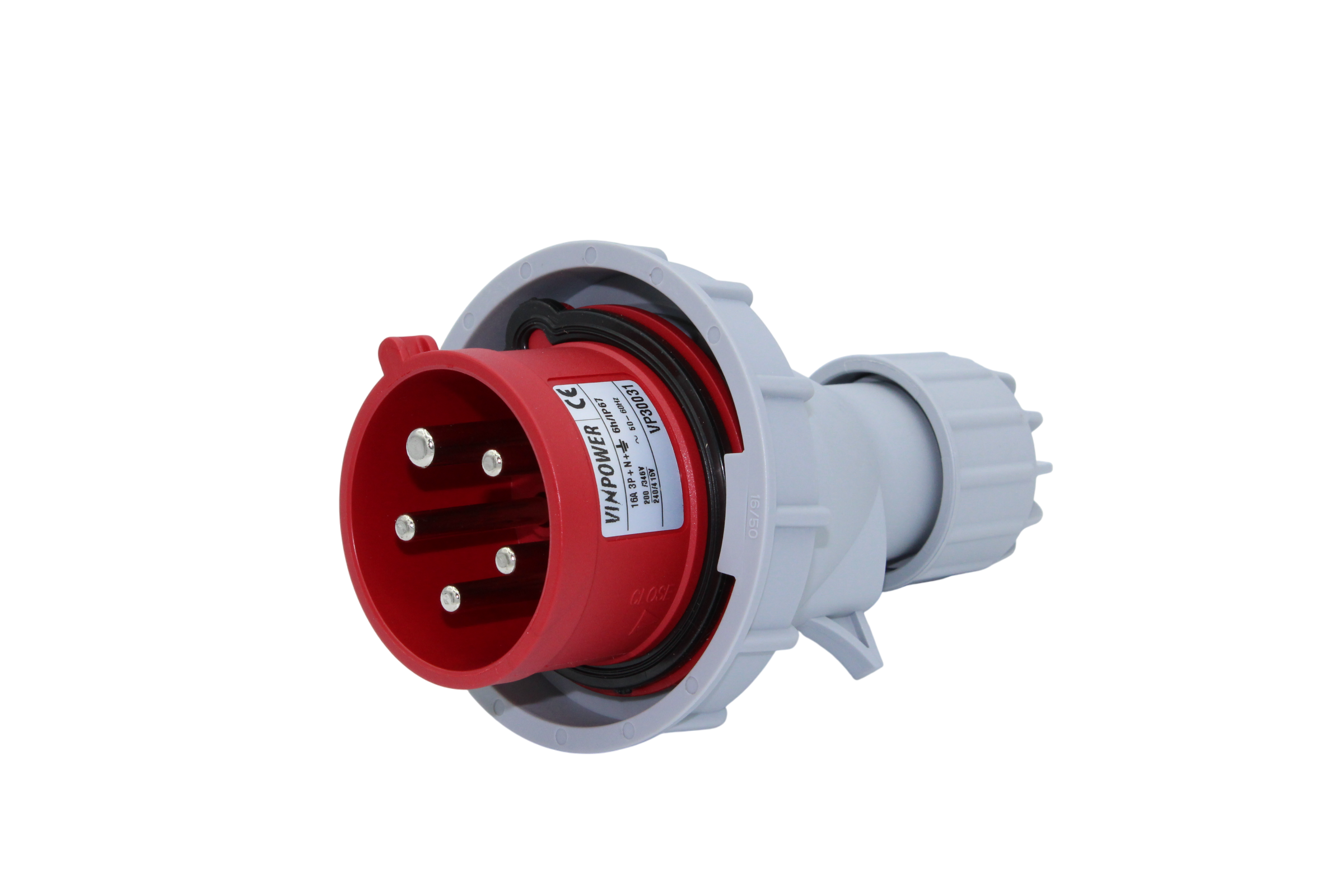

Vinpower VP30031 16A 5-pin 380V IP67 plug with shroud
Vinpower
In stock
A Vinpower VP30031 five-pin IP67 industrial plugtop with the shroud/locking body for 16A 3P+N+E connections, retaining the manufacturer voltage designation exactly as published.
Vinpower VP30031 16A 3P+N+E five-pin industrial plugtop with the IP67 shroud/locking body and 6H key position.
- KEW code
- VP30031
- Brand
- Vinpower
- Manufacturer
- Vinpower
- MPN
- VP30031
- Category
- Plugs & Adaptors
- Specification
- Manufacturer/product code: VP30031 Product type: 16A industrial plug/plugtop Configuration: 3P+N+E, five pin Rated current: 16A Clock position: 6H Ingress protection: IP67 Material: flame-retardant PA6; RoHS/REACH Contacts: nickel-plated brass Standard: IEC60309-1/2 Voltage designation: 380 V
- Feature
- Vinpower VP30031
- Feature
- 16A five-pin 3P+N+E plugtop
- Feature
- 380V source designation on exact X-Line listing
- Feature
- IP67 protection
- Feature
- 6H key position
- Feature
- Grey shroud/locking body
- Data sheet
- Open technical sheet
