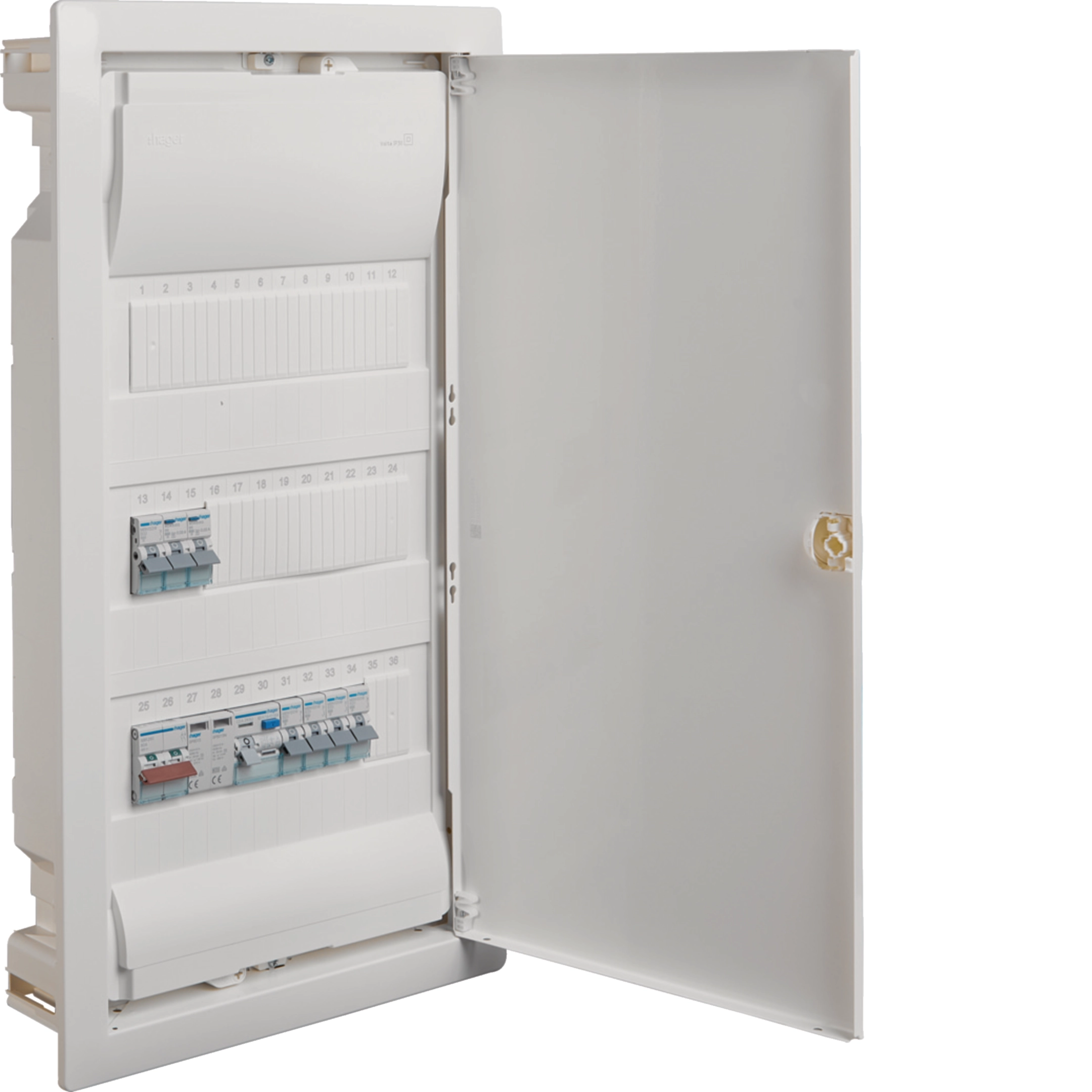

Hager Volta 3-row consumer unit with SPD, 63 A, IP30
Hager · Hager
HAGER VOLTA 3R 2XRCBO SPD
- KEW code
- VF9101SPD
- Brand
- Hager
- Manufacturer
- Hager
- MPN
- VF9101SPD
- Category
- Distribution
- Specification
- - Range: Volta consumer units. - Mounting: flush mounting. - Rows: 3. - Rails: 3. - Modules: 36. - Nominal voltage: 400V. - Rated current: 63A. - Dimensions: 630.5 x 348 x 94.5mm. - Built in depth: 89mm. - Material: plastic. - Colour: pure white RAL 9010. - Ip rating: IP30. - Impact resistance: IK07. - Glow wire test: 650C. - Protection class: Isolation class II.
- Feature
- Three-row Volta flush consumer unit
- Feature
- 36-module capacity
- Feature
- SPD version with fitted RCD/RCBO layout
- Feature
- Neutral and earthing terminal blocks included
