KEW catalogue

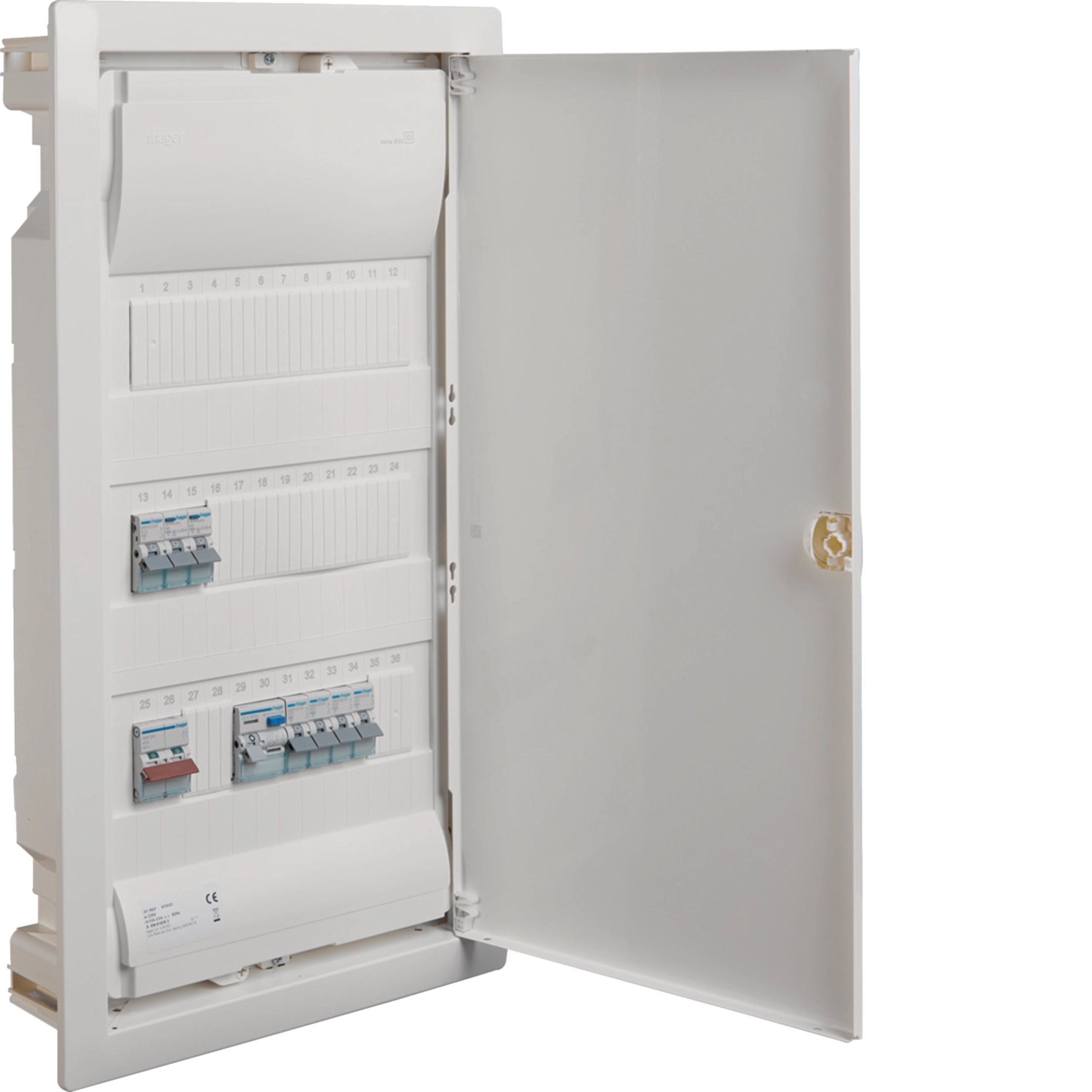

Hager Volta 3-row consumer unit, 63 A, IP30
Hager · Hager
HAGER VOLTRA 3 ROW 2 RCBO
- KEW code
- VF9101
- Brand
- Hager
- Manufacturer
- Hager
- MPN
- VF9101
- Category
- Distribution
- Specification
- - Mounting: Flush mounting. - Nominal voltage: 400V. - Rated current: 63A. - Rows: 3. - Rails: 3. - Modules: 36. - Height mm: 630.5. - Width mm: 348. - Depth mm: 94.5. - Built in width mm: 314. - Built in depth mm: 89. - Material: Plastic. - Colour: Pure white, RAL 9010. - Protection class: Isolation class II. - Impact resistance: IK07. - Ingress protection: IP30. - Door: Single non-transparent door. - Lock: Snap-on lock. - Terminal blocks: Neutral and earth terminal blocks included. - Outdoor use: No.
- Feature
- 3-row Volta flush consumer unit
- Feature
- 36-module DIN capacity
- Feature
- 63A rated current
- Feature
- Includes neutral and earth terminal blocks
- Feature
- Pure white plastic enclosure with single door
- Feature
- IP30 and IK07 enclosure ratings
