KEW catalogue

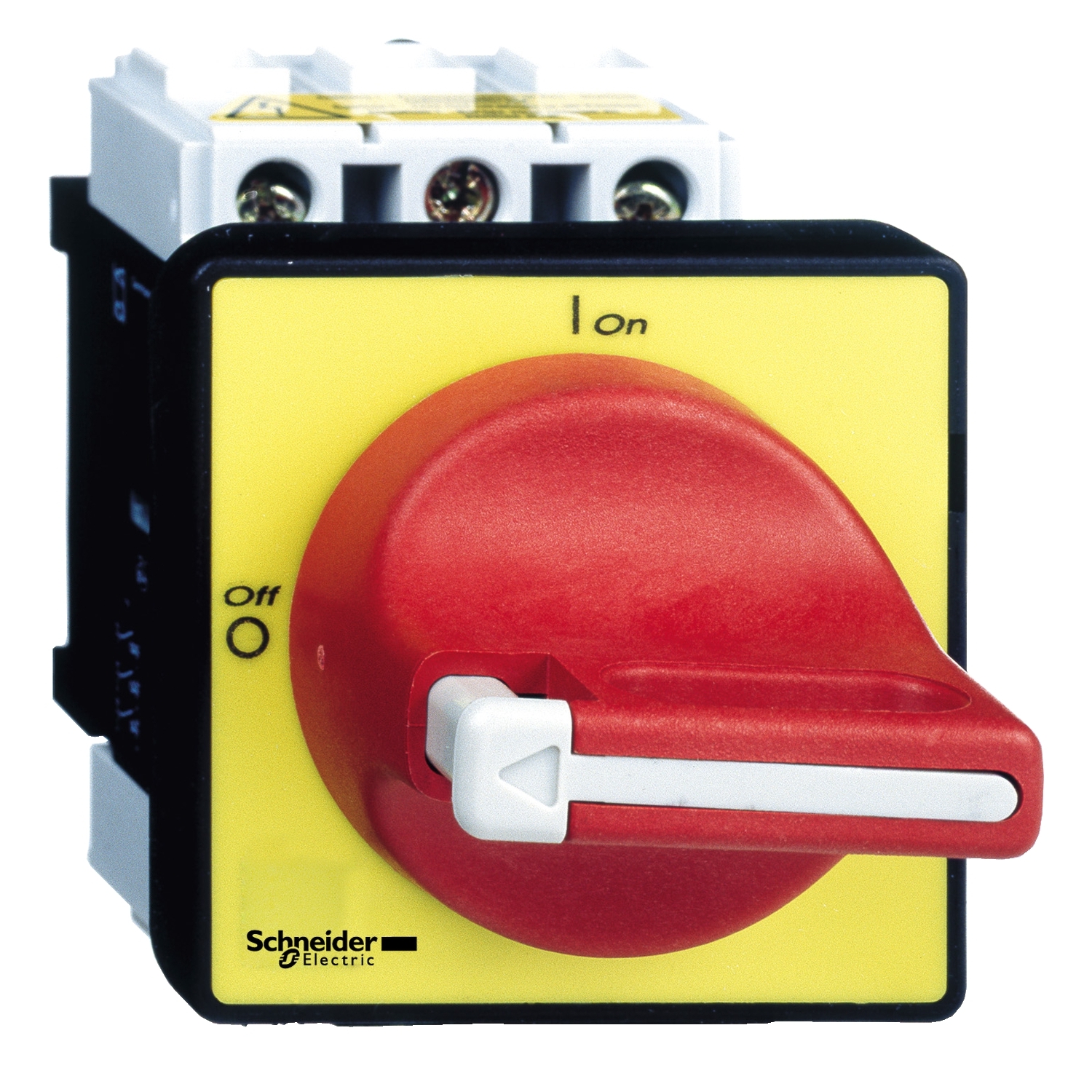

Door Panel switch with Handle

DOOR PANEL SW CW HANDLE

KEW code

VCFO

Category

Wiring Accessories

Specification

- Brand: Schneider Electric. - Mpn: VCF0. - Product range: TeSys Vario. - Product type: emergency stop switch disconnector. - Poles: 3P. - Contacts: 3 NO. - Conventional free air thermal current: 25 A. - Conventional enclosed thermal current: 20 A. - Rated operational voltage: 690 V AC 50/60 Hz. - Rated operational current: 14.5 A AC-23 at 400 V. - Power rating: 5.5 kW at 400/415 V AC-3; 7.5 kW at 400/415 V AC-23. - Rated conditional short circuit current: 10 kA at 400 V with 25 A aM/gG. - Impulse withstand voltage: 8 kV. - Control type: rotary handle. - Handle colour: red. - Front plate colour: yellow. - Padlocking: 1 to 3 padlocks, 4-8 mm. - Ip rating: IP20 / IP65 front protection. - Dimensions: 60 x 60 mm base, 74 mm height, 60 mm width. - Standards: ['IEC 60947-3']. - Gtin: 3389110449396.

Feature

Door-mounted switch disconnector with handle

Feature

25 A thermal current rating

Feature

3-pole, 3 NO composition

Feature

Red/yellow rotary handle

Feature

Padlockable operation

Feature

IP65 front protection
