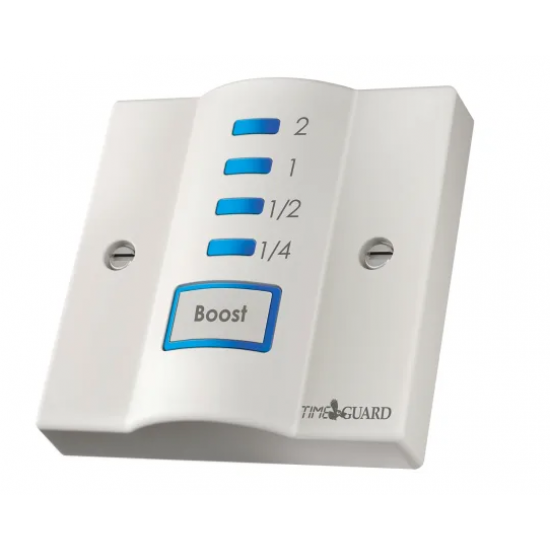

Timeguard Electronic boost timer
Timeguard · Timeguard
2 HOUR BOOST TIMER 15M IN
- KEW code
- TGBT4
- Brand
- Timeguard
- Manufacturer
- Timeguard
- MPN
- TGBT4
- Category
- Control Gear
- Specification
- - Product type: Electronic boost timer. - Boost times: 15 minutes, 30 minutes, 1 hour, 2 hours. - Operating voltage: 230 V AC, 50 Hz. - Resistive load: 13 A. - Inductive load: 5 A. - Filament lamp load: 1000 W. - Fluorescent lamp load: 500 W. - Low energy lamp load: 100 W. - Ambient temperature: 0 C to 40 C. - Dimensions: 85 mm x 85 mm x 31 mm. - Minimum wall box depth: 25 mm. - Ean: 5012483011300 on grounded.
- Feature
- Four boost durations from 15 minutes to 2 hours.
- Feature
- Press-button control with automatic switch-off at the end of the selected period.
- Feature
- Suitable for immersion heater, heating, ventilation, or lighting control within rating.
- Feature
- Fits a single-gang wall box of suitable depth.
