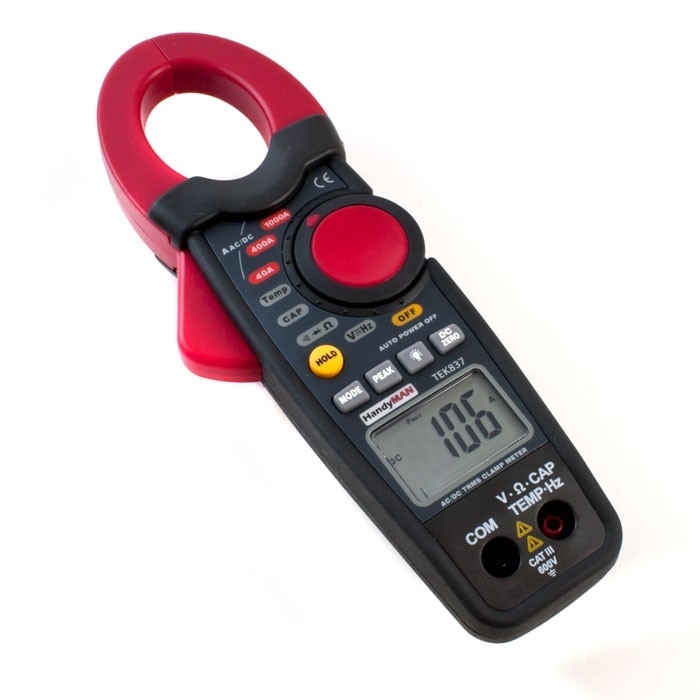

Alphatek AC/DC Clamp Meter
Alphatek · Alphatek / HandyMAN
AC/DC CLAMP METER
- KEW code
- TEK837
- Brand
- Alphatek
- Manufacturer
- Alphatek / HandyMAN
- MPN
- TEK837
- Category
- Tools & Accessories
- Specification
- Product type: AC/DC True RMS clamp meter. Model: TEK837. AC/DC current range: 0.01 A to 1000 A. Current ranges: 40 A, 400 A and 1000 A. AC/DC voltage range: Up to 600 V. Resistance range: Up to 40 MΩ. Capacitance range: Up to 40 mF. Frequency range: Up to 4 kHz. Temperature range: -40 °C to 1000 °C. Safety category: CAT III 600 V and CAT II 1000 V, per the operating manual. Display: 4000-count LCD with bar graph. Clamp opening: Approximately 30 mm. Power: 9 V IEC 6F22 battery. Dimensions: 229 x 80 x 49 mm.
- Feature
- Measures AC and DC current up to 1000 A.
- Feature
- True RMS current and voltage measurement.
- Feature
- Measures resistance, capacitance, frequency and temperature.
- Feature
- Continuity and diode testing.
- Feature
- Peak hold, data hold and DC zero.
