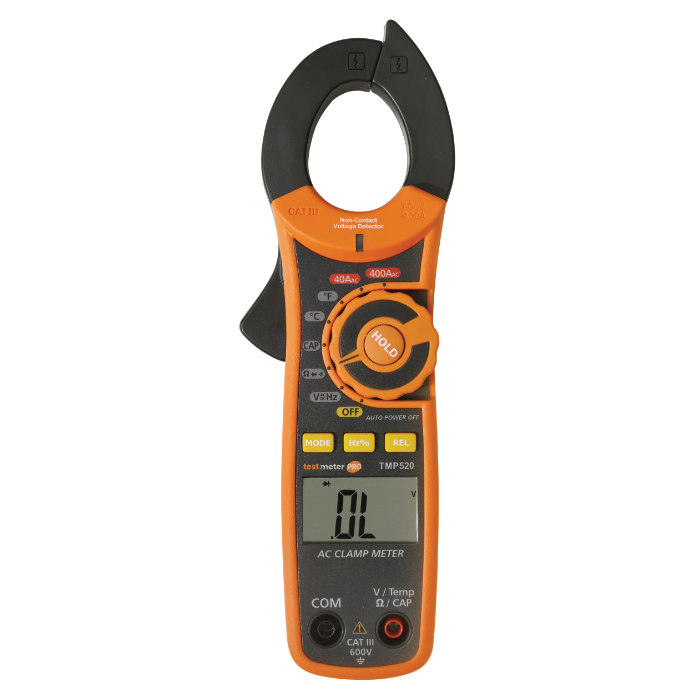

Test Meter PRO HANDYTEK520 Tek520 AC Clamp Tester
Test Meter PRO · Test Meter Group Ltd
TEK520 AC CLAMP TESTER
- KEW code
- TEK520
- Brand
- Test Meter PRO
- Manufacturer
- Test Meter Group Ltd
- MPN
- HANDYTEK520
- Category
- Tools & Accessories
- Specification
- Product type: AC clamp meter. AC current range: Up to 600 A. AC and DC voltage range: Up to 600 V. Resistance range: Up to 40 MΩ. Temperature range: -20 °C to 1000 °C. Maximum jaw opening: 26 mm. Display: 3999-count backlit LCD. Ranging: Automatic and manual. Continuity indication: Audible buzzer. Power supply: Three AAA batteries. Dimensions: 208 x 78 x 35 mm. Included accessories: Test leads, K-type thermocouple, batteries, instruction manual and carrying case.
- Feature
- Measures AC current without opening the circuit.
- Feature
- Checks AC/DC voltage, resistance and continuity.
- Feature
- Includes a temperature measurement function.
- Feature
- Backlit 3999-count display.
- Feature
- Supplied with leads, thermocouple and carrying case.
