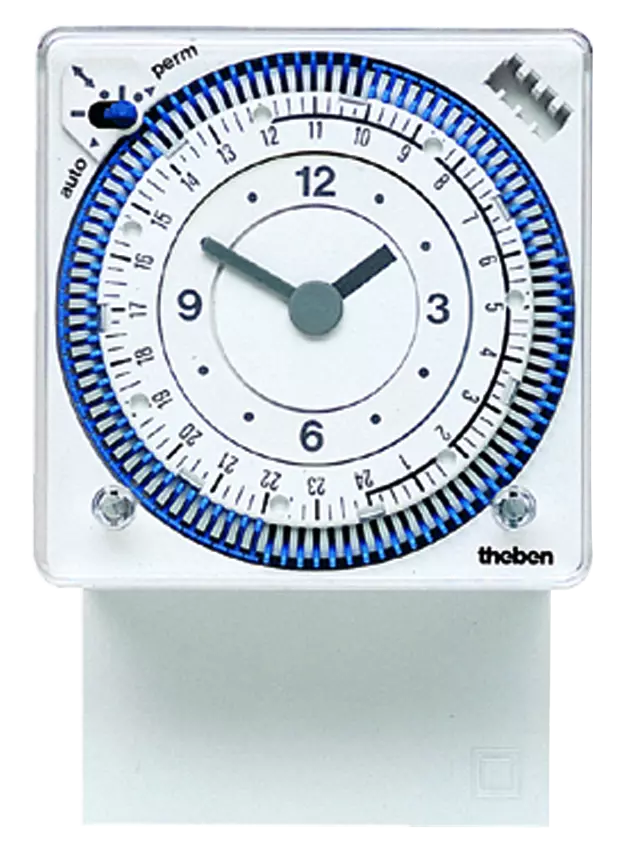

Theben Analogue time switch, IP20
Theben · Theben
THYBEN 24H SURF CLK =269H
- KEW code
- SYN169H
- Brand
- Theben
- Manufacturer
- Theben
- MPN
- SYN169H
- Category
- Control Gear
- Specification
- - Brand: Theben. - Manufacturer part number: SYN 169 s / SYN169H. - Item number: 1690801. - Ean from kew: 2000010015412. - Product type: Analogue time switch. - Channels: 1. - Program: Daily 24-hour program. - Switching segments: 96. - Minimum switching time: 15 minutes. - Operating voltage: 230 V AC. - Frequency: 50 Hz. - Drive: Mains-synchronous motor. - Contact type: Changeover contact. - Switching capacity resistive: 20 A at 250 V AC, cos phi 1. - Switching capacity inductive: 2 A at 250 V AC, cos phi 0.6. - Mounting: Front panel or wall installation. - Connection: Screw terminals. - Protection: IP20. - Ambient temperature: -10 to 55 C. - Power reserve: None.
- Feature
- 24-hour analogue daily program.
- Feature
- One channel with changeover contact.
- Feature
- 96 switching segments with 15-minute resolution.
- Feature
- Manual switching preselection and permanent on/off switch.
- Feature
- Wall or front-panel mounting options.
