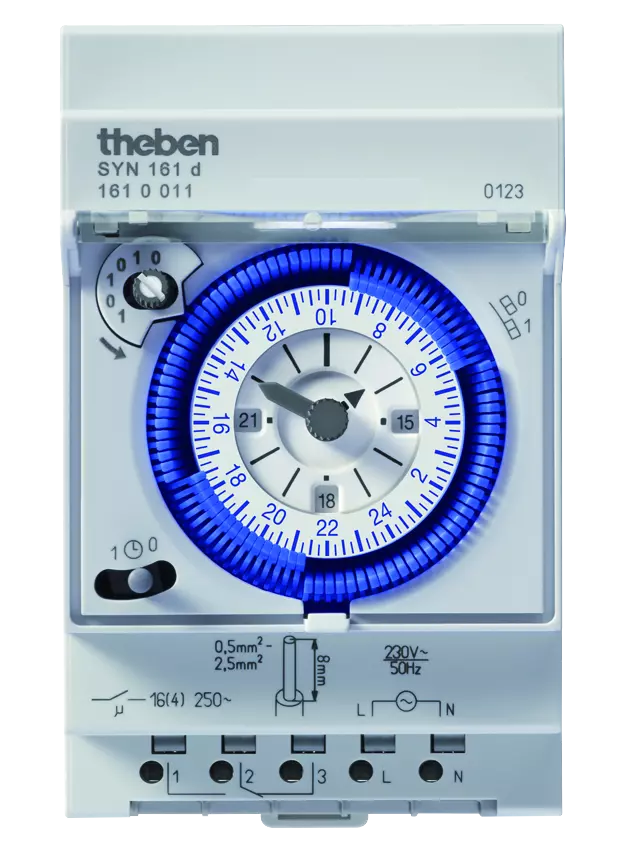

Theben Analogue time switch, 230 V AC, IP20, DIN rail
Theben · Theben
Theben SYN 161 d single-channel analogue DIN-rail time switch with daily 24 hour program, 96 switching segments, 15 minute minimum switching interval, mains-synchronised movement, DuoFix spring terminals and manual ON/AUTO/OFF override.
- KEW code
- SYN161D
- Brand
- Theben
- Manufacturer
- Theben
- MPN
- SYN 161 d
- Category
- Control Gear
- Specification
- - Product type: Analogue time switch. - Channels: 1. - Program: Daily 24 hour program. - Mounting: DIN rail. - Width: 3 modules. - Supply voltage: 230 V AC. - Frequency: 50 Hz. - Minimum switching interval: 15 minutes. - Switching segments: 96. - Contact type: Changeover contact. - Switching capacity resistive: 16 A at 250 V AC. - Switching capacity inductive: 4 A at 250 V AC, cos phi 0.6. - Terminals: DuoFix spring terminals, 0.5 to 2.5 mm2 conductor range. - Protection: IP20. - Ambient temperature: -20 deg C to +55 deg C.
- Feature
- Daily analogue timer with visible 24 hour dial.
- Feature
- 15 minute switching resolution for routine daily schedules.
- Feature
- Manual ON/AUTO/OFF override for temporary control.
- Feature
- DIN-rail mounting for distribution boards and panels.
- Feature
- Spring terminals support solid or stranded conductors.
