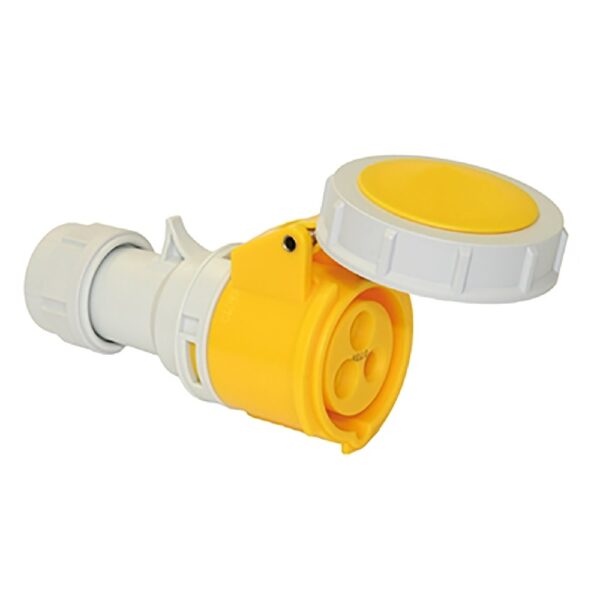

Garo SV216-4S 16 A 3-pin 100–130 V IP67 coupler
Garo
In stock
16 A three-pin yellow IP67 industrial coupler for 100–130 V circuits.
Match the connector to the mating plug or socket by current rating, voltage, pole configuration and earth-contact clock position. Select the required ingress protection for the complete connection and check cable capacity and strain relief before assembly.
- KEW code
- SV216-4S
- Brand
- Garo
- Manufacturer
- Garo
- MPN
- SV216-4S
- Category
- Plugs & Adaptors
- Specification
- Product type: Industrial coupler. Rated current: 16 A. Pin configuration: 3 pin, 2P+E. Operating voltage: 100–130 V. Frequency: 50/60 Hz. Clock position: 4 h. Colour code: Yellow. Ingress protection: IP67. Cable size: 1–2.5 mm². Standards: IEC 60309-1 and IEC 60309-2.
- Feature
- 16 A, 3-pin 2P+E format.
- Feature
- 100–130 V with yellow 4 h coding.
- Feature
- IP67 protection.
- Feature
- Accepts 1–2.5 mm² cable.
