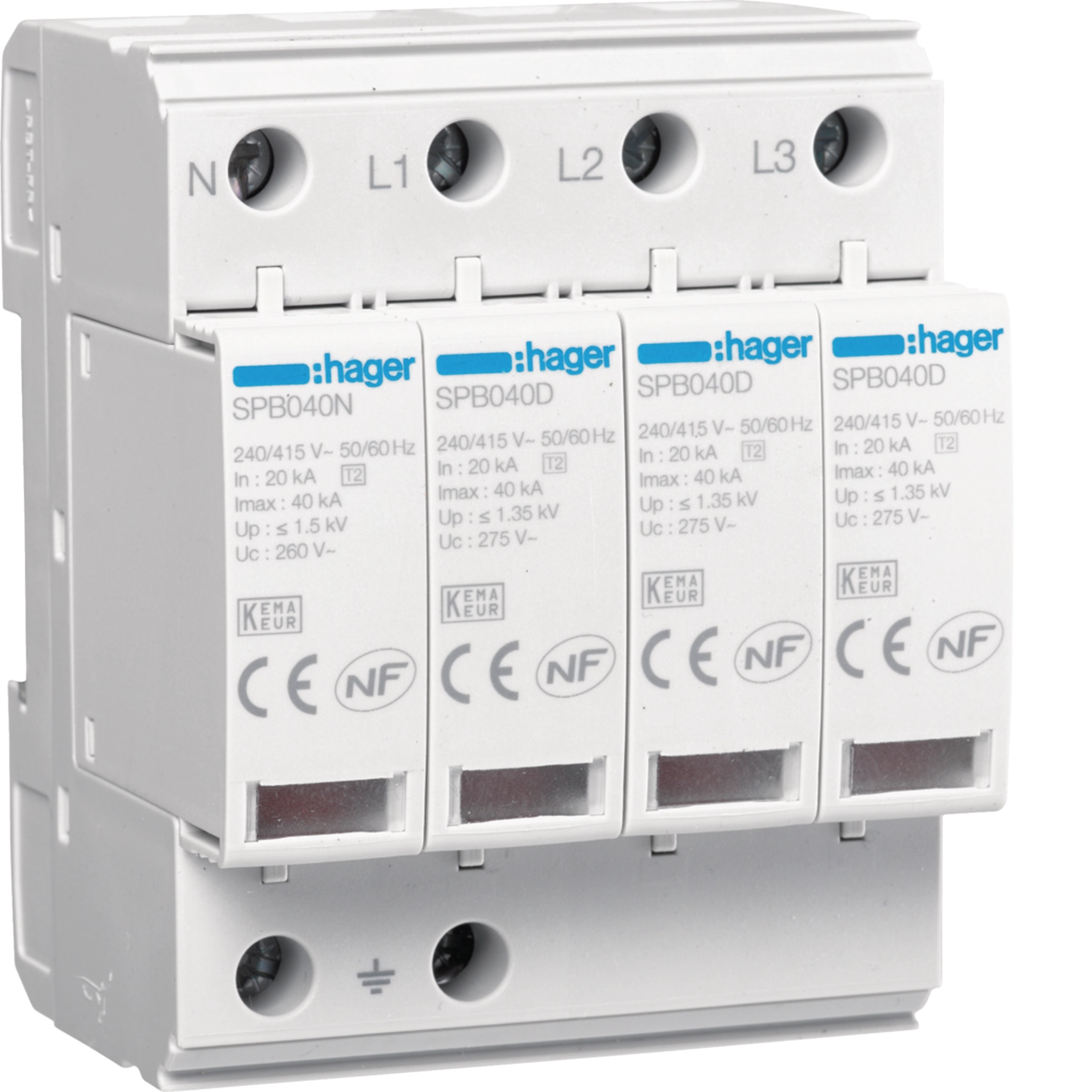

Hager 3/4 pole surge protection
Hager · Hager
HAGER 3/4 POLE SURGE PROT
- KEW code
- SPD440D
- Brand
- Hager
- Manufacturer
- Hager
- MPN
- SPD440D
- Category
- Distribution
- Specification
- - Device type: Type 2 surge protection device. - Poles modules: 4 modules. - Network type: TN-S, TT. - Rated operational voltage: 240-415 V. - Continuous operating voltage: 275 V. - Voltage protection level: 1.35 kV L-N/PEN; 1.50 kV L-PE/N-PE. - Nominal discharge current: 20 kA. - Maximum discharge current: 40 kA. - Max overcurrent protection: 125 A fuse. - Dimensions: 89.80 mm H x 71 mm W x 65.7 mm D. - Operating temperature: -40 deg C to +80 deg C. - Conductor cross section flexible: 1.5-25 mm2. - Conductor cross section solid: 1.5-35 mm2. - Remote signalling contact: No. - Frequency: 50-60 Hz. - Halogen free: Yes.
- Feature
- Four-pole Type 2 SPD for TN-S and TT networks
- Feature
- 40 kA maximum discharge capacity
- Feature
- 20 kA nominal discharge current
- Feature
- 4-module DIN-rail format
- Feature
- No remote signalling contact
- Feature
- Halogen-free and RoHS conforming
