KEW catalogue

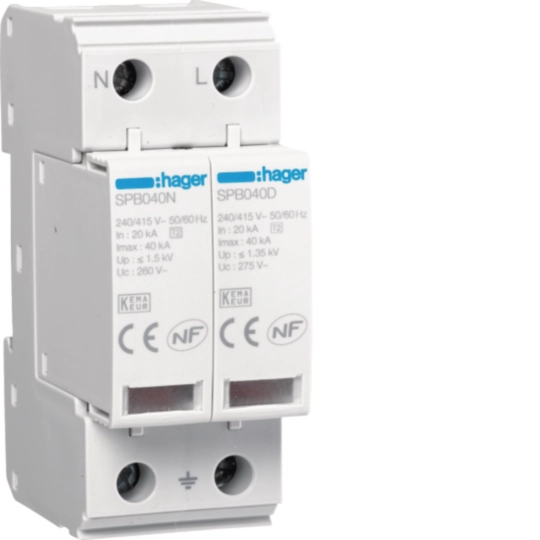

Hager Type 2 SPD, 2-pole, 40 kA
Hager · Hager
SURGE PROTECTOR - SPD 2P T2 TNS/TT 40KA
- KEW code
- SPB240D
- Brand
- Hager
- Manufacturer
- Hager
- MPN
- SPB240D
- Category
- Distribution
- Specification
- - Poles: 2P. - Spd type: Type 2 / T2. - Network types: TN, TT, TN-C-S. - Continuous operating voltage uc: 275V. - Rated operational voltage ue: 240-415V. - Nominal discharge current in: 20kA. - Maximum discharge current imax: 40kA. - Voltage protection level up: 1.35kV. - Modules: 2. - Dimensions: 98.7 x 35.6 x 65.7mm. - Operating temperature: -40 to 80C. - Remote signalling contact: Yes. - Standard class: IEC 61643 T2.
- Feature
- Hager SPB240D Type 2 SPD
- Feature
- 2-pole protection for TN, TT and TN-C-S networks
- Feature
- 20kA nominal discharge current
- Feature
- 40kA maximum discharge current
- Feature
- 2-module DIN rail format with remote signalling contact
