KEW catalogue

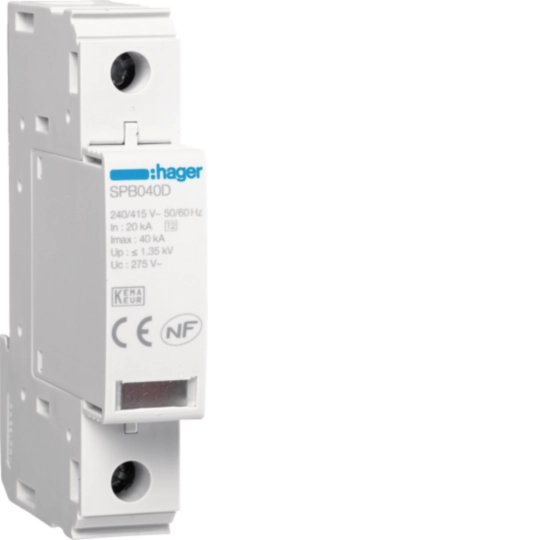

Hager Type 2 SPD, 1-pole, 40 kA

Hager · Hager

SURGE PROTECTOR 1P T2 40K

KEW code: SPB140D
Brand: Hager
Manufacturer: Hager
MPN: SPB140D
Category: Distribution
Specification: - Brand: Hager. - Manufacturer part number: SPB140D. - Ean: 3250615515391. - Product type: Surge protection device. - Poles: 1P. - Surge type: Type 2 / Class II. - Network type: TN, TT / TNC. - Modules: 1. - Rated operational voltage: 240-415 V. - Continuous operating voltage: 275 V. - Nominal discharge current: 20 kA, 8/20 us. - Maximum discharge current: 40 kA. - Voltage protection level: 1.35 kV L-N/PEN. - Maximum overcurrent protection: 125 A parallel fuse. - Frequency: 50-60 Hz. - Operating temperature: -40 to 80 C. - Connection capacity flexible: 1.5-25 mm2. - Connection capacity solid: 1.5-35 mm2. - Remote signalling: No.
Feature: Type 2 single-pole surge protection module.
Feature: 20 kA nominal and 40 kA maximum discharge current ratings.
Feature: One-module DIN rail format for distribution boards.
Feature: Suitable for listed TN/TT network configurations.
Feature: Hagersheet and Ireland catalogue confirm exact identity and EAN.
