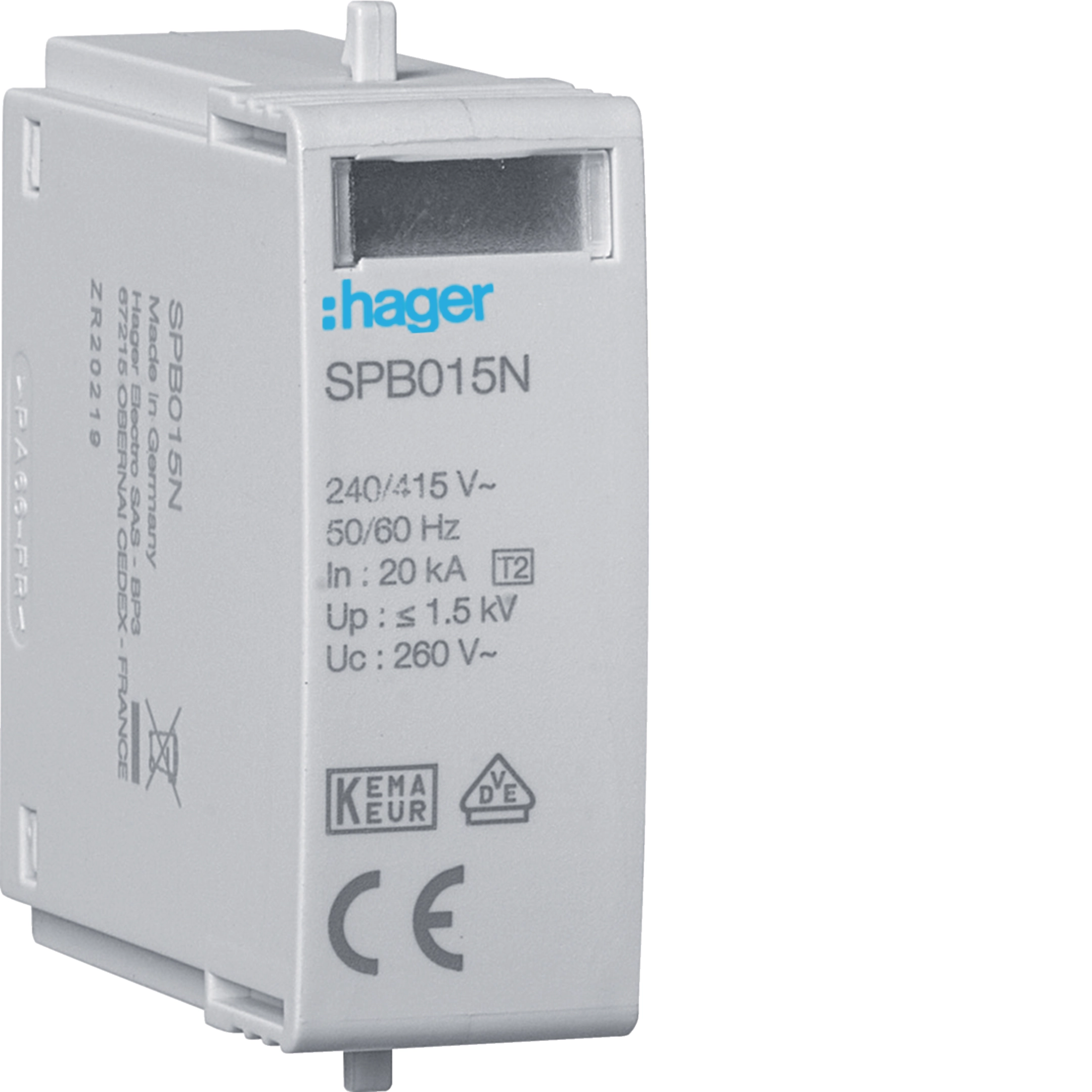

Hager replacement surge-protection cartridge

Hager · Hager

HAGER SURGE PROTECTOR

KEW code: SPB015N
Brand: Hager
Manufacturer: Hager
MPN: SPB015N
Category: Distribution
Specification: - Brand: Hager. - Model: SPB015N. - Product type: Type 2 surge protection cartridge. - Poles or mode: N-PE cartridge. - Modules: 1 module. - Rated operational voltage: 240 V AC. - Continuous operating voltage: 275 V according to page technical; product name states Uc 260 V. - Voltage protection level: 1.50 kV. - Voltage protection level n pe: 1.35 kV. - Nominal discharge current: 20 kA, 8/20 us. - Maximum discharge current: 40 kA. - Network type: ['TN-S', 'TT']. - Standard class: IEC 61643 T2. - Frequency: 50-60 Hz. - Dimensions: {'height': '52.4 mm', 'width': '17.5 mm', 'depth': '55.3 mm'}. - Operating temperature: -40 to 80 C. - Ean: 3250615514868.
Feature: Type 2 surge protection cartridge
Feature: N-PE protection mode for compatible surge protection assemblies
Feature: 20 kA nominal and 40 kA maximum discharge current ratings
Feature: Compact one-module cartridge format
Feature: Suitable for TN-S and TT network configurations
