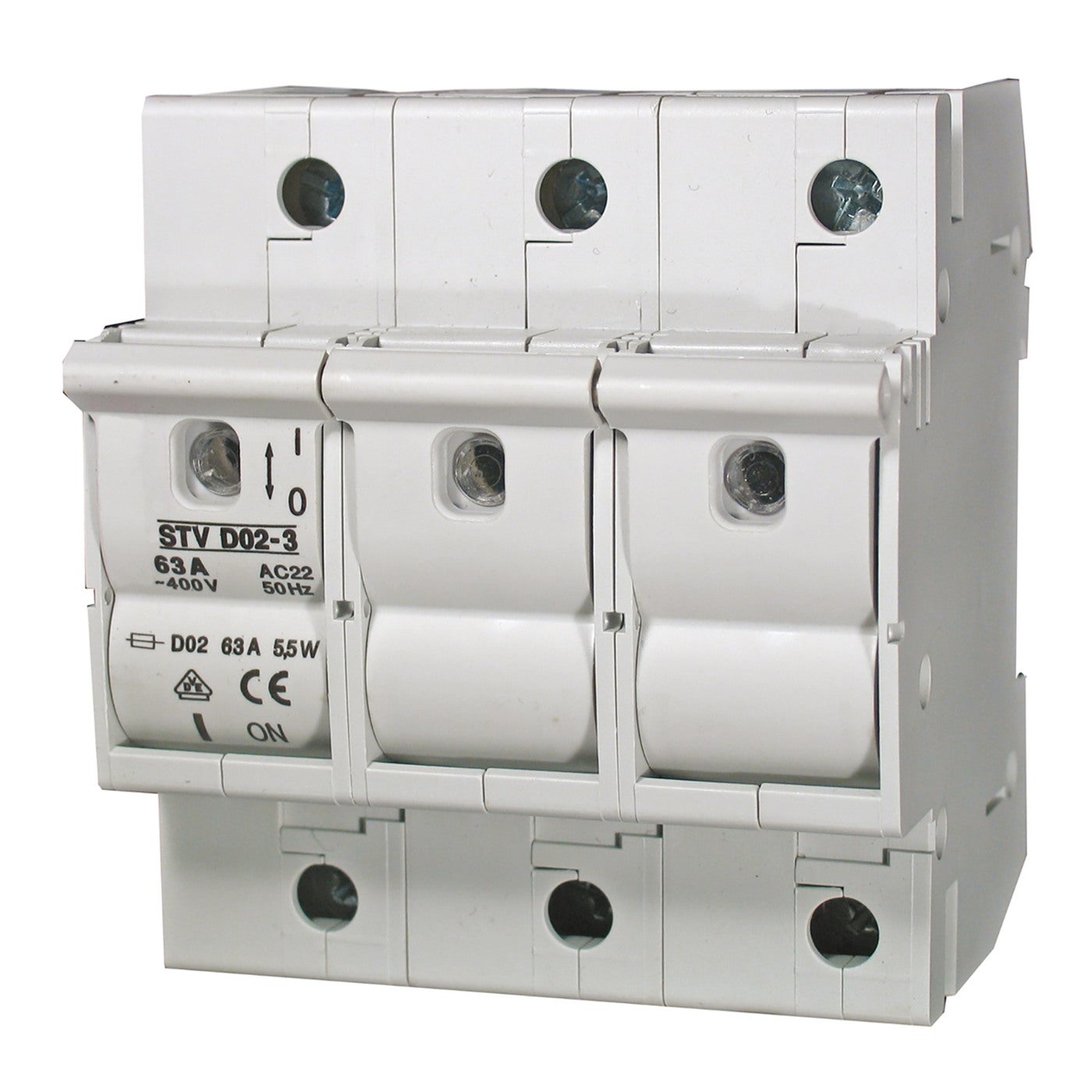

63 A three-pole neozed switch/fuse 400 V AC
63A TP NEOZED SW/FUSE
- KEW code
- SFL633
- Category
- Distribution
- Specification
- - Product type: Neozed switch-fuse disconnector. - Poles: 3. - Rated current a: 63. - Fuse system: D02 Neozed. - Rated voltage: 230/400 V AC; 110 V DC for 2-pole only. - Rated breaking capacity: 50 kA. - Rated insulation voltage: 400 V. - Rated impulse withstand voltage: 6000 V. - Terminal capacity: 1.5 to 35 mm². - Standards: IEC/EN 60947-1, IEC/EN 60947-3, IEC 60269-1, IEC 60269-3.
- Feature
- Three-pole 63 A switch-fuse disconnector
- Feature
- Accepts D02 Neozed fuse links
- Feature
- DIN rail snap-on mounting
- Feature
- Supply can be connected from top or bottom
- Feature
- Can be sealed in on or off position
