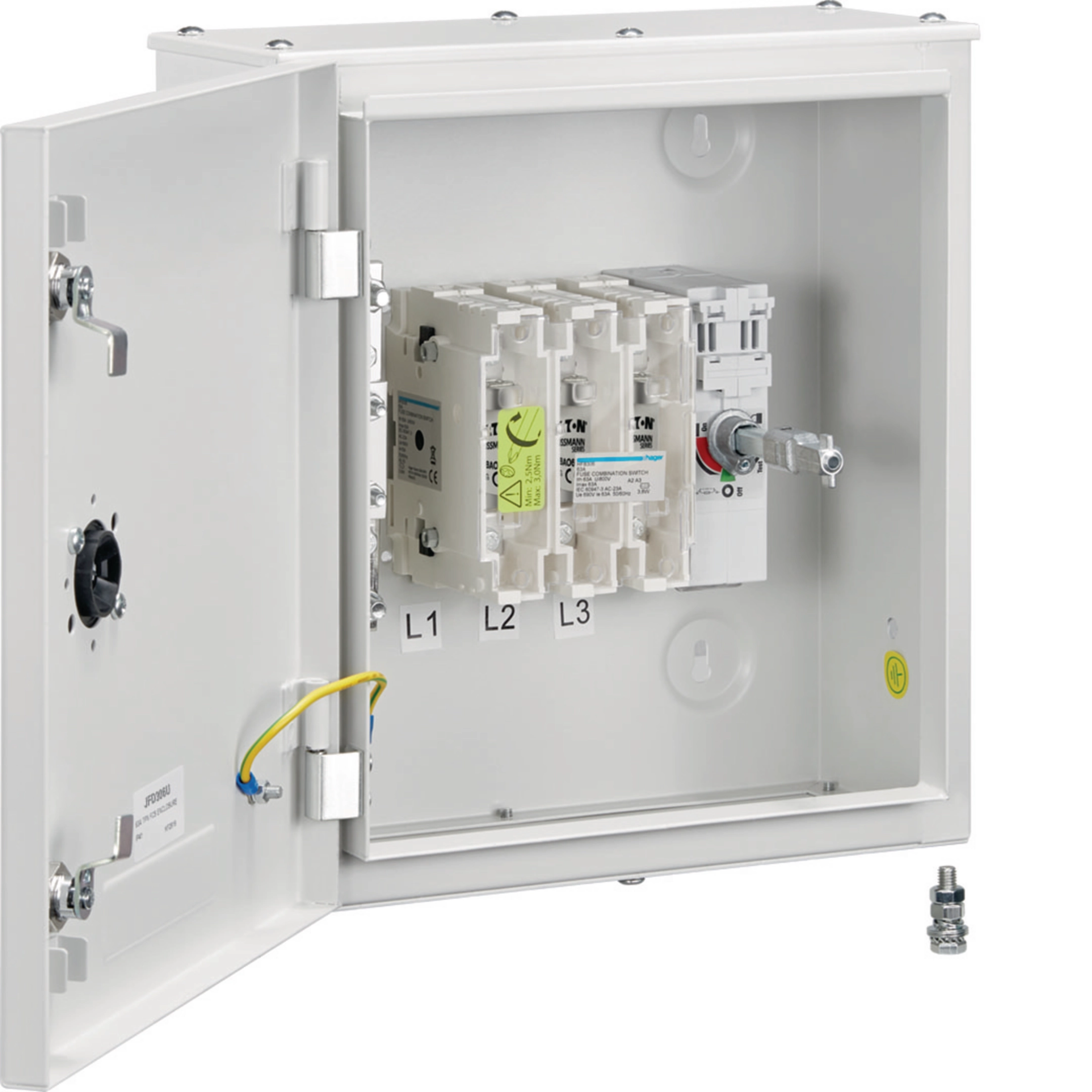

Hager JFD306U 63 A fused main switch, 415 V AC
Hager · Hager
63A MAINS SW/FUSE HAGER
- KEW code
- SFL63
- Brand
- Hager
- Manufacturer
- Hager
- MPN
- JFD306U
- Category
- Distribution
- Specification
- Rated current: 63 A. Pole configuration: triple pole and neutral. Product type: enclosed fuse combination switch. Fuse type family: BS88 HRC fuse links. Voltage rating: 415 V AC family. Mounting: surface-mounted metal enclosure. Handle: door-mounted rotary handle. Handle security: padlockable in the OFF position. Access safety: mechanically interlocked door. Terminal capacity: 25 mm2 family. Approximate dimensions: 325 x 300 x 150 mm. Standard family: BS EN 60947-3.
- Feature
- 63 A rating.
- Feature
- Triple-pole-and-neutral switching.
- Feature
- Metal surface-mounted enclosure.
- Feature
- Door-mounted rotary handle.
- Feature
- Padlockable OFF position.
- Feature
- Accepts BS88 fuse links.
