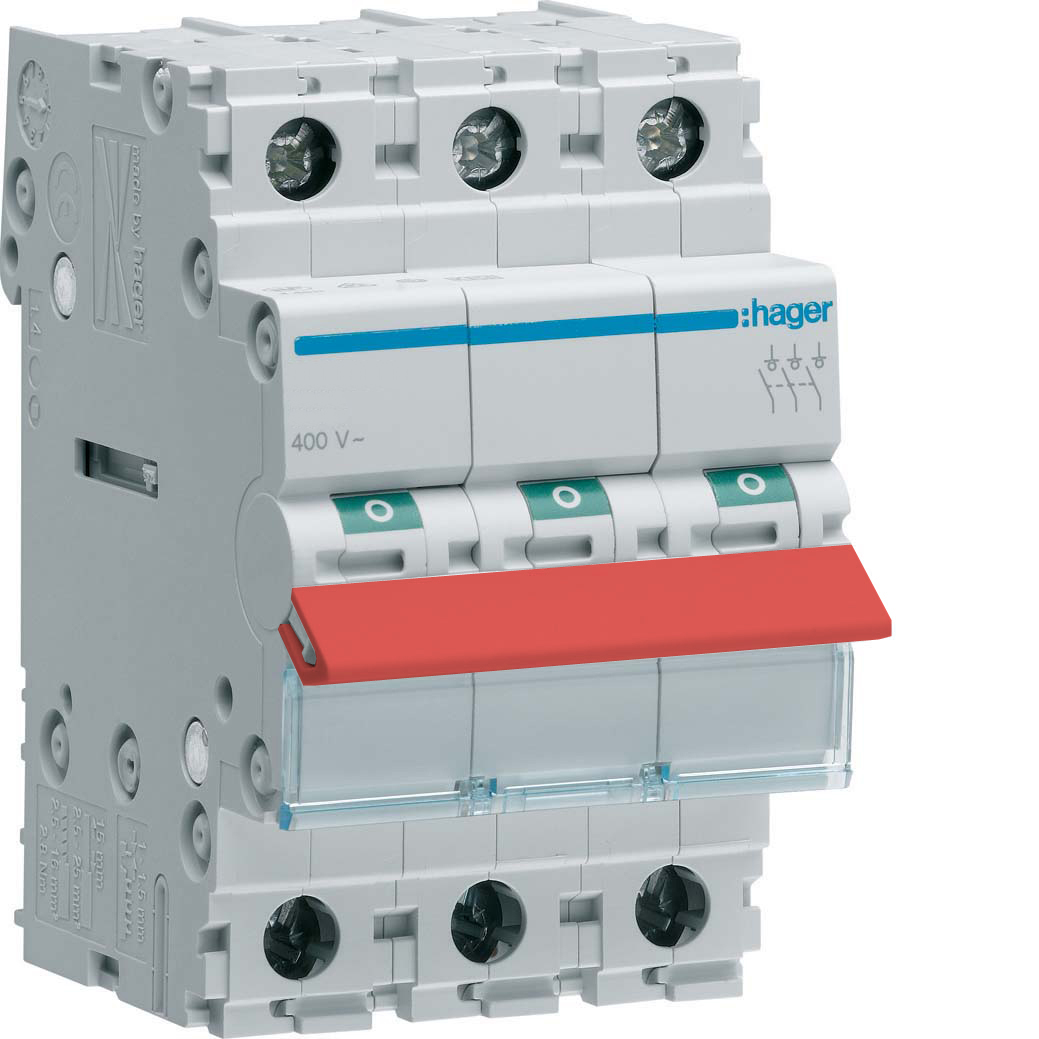

Hager 80 A 3-pole isolator with red toggle
Hager · Hager
80A 3P HAGER ISOL RED TOG
- KEW code
- SBR380
- Brand
- Hager
- Manufacturer
- Hager
- MPN
- SBR380
- Category
- Distribution
- Specification
- - Brand: Hager. - Manufacturer part number: SBR380. - Ean: 3250615510440. - Product type: Modular switch disconnector. - Poles: 3P. - Rated current: 80 A. - Rated operational voltage: 400 V AC. - Rated insulation voltage: 440 V. - Impulse withstand voltage: 6 kV. - Utilisation category: AC21/AC22. - Short time withstand current: 0.96 kA for 1 s. - Short circuit making capacity: 1.35 kA at 415 V AC. - Mounting: DIN rail / modular. - Modules: 3 modules. - Connection capacity: 6-50 mm2 on product page. - Terminal torque: 3.6 Nm.
- Feature
- 80 A three-pole modular switch for three-phase isolation.
- Feature
- Red toggle provides clear manual switch position indication.
- Feature
- DIN rail format for distribution boards and switchboards.
- Feature
- AC21/AC22 rated for switching resistive and mixed loads.
- Feature
- Hagersheet voltage and short-circuit ratings.
