KEW catalogue

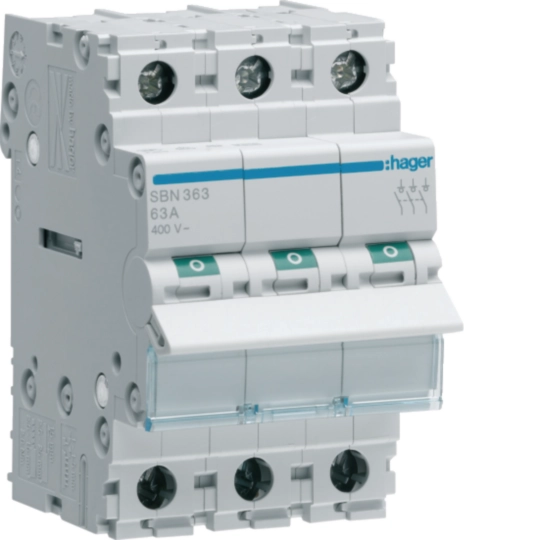

Hager 63 A 3-pole switch, IP20
Hager · Hager
63A TP HAGER SWITCH
- KEW code
- SBN363
- Brand
- Hager
- Manufacturer
- Hager
- MPN
- SBN363
- Category
- Distribution
- Specification
- - Product type: Modular switch disconnector. - Poles: 3P. - Rated current: 63 A. - Rated operational voltage: 400 V AC. - Rated insulation voltage: 440 V. - Rated impulse withstand voltage: 6 kV. - Frequency: 50-60 Hz. - Modules: 3. - Ip rating: IP20. - Dimensions: 83 mm high x 52.5 mm wide x 68 mm deep. - Flexible conductor capacity: 2.5 to 16 mm2. - Rigid conductor capacity: 2.5 to 25 mm2. - Operating temperature: -20 C to 70 C. - Ean: 3250615510228.
- Feature
- Three-pole switching for three-phase circuits.
- Feature
- 63 A rated current for distribution-board isolation duties.
- Feature
- DIN-rail modular format with three-module width.
- Feature
- Hager SBN range switch-disconnector with visible on/off handles.
