KEW catalogue

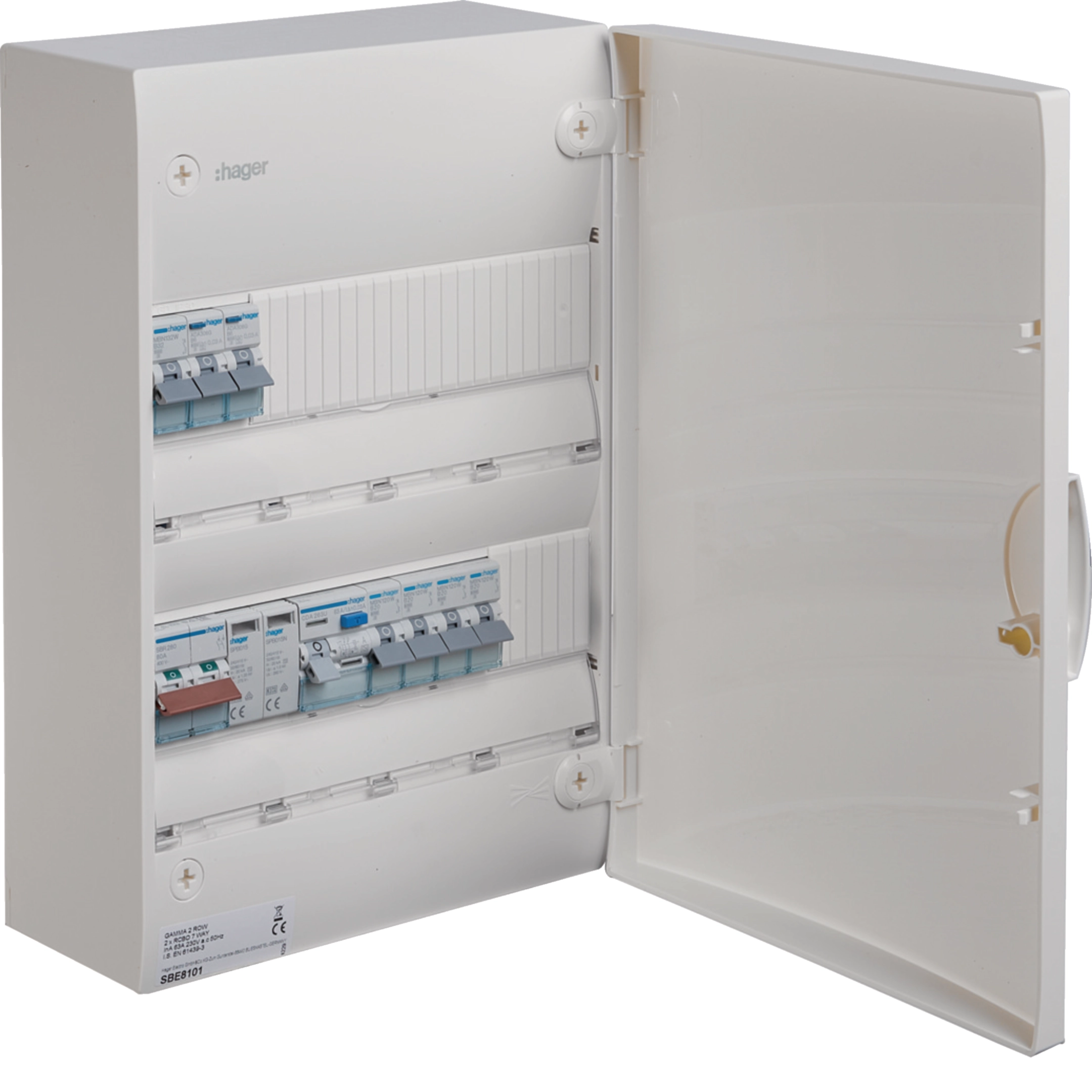

Hager Gamma 2-row consumer unit with SPD, 63 A, IP40
Hager · Hager
GAMMA 2ROW CON UNIT SPD
- KEW code
- SBE8101SPD
- Brand
- Hager
- Manufacturer
- Hager
- MPN
- SBE8101SPD
- Category
- Distribution
- Specification
- - Mounting: Surface mounting. - Accessible phases: 1. - Rated current: 63A. - Rows: 2. - Rails: 2. - Modules: 26. - Rccb in enclosure: 1. - Height mm: 375. - Width mm: 250. - Depth mm: 103. - Width units: 13. - Material: Polystyrene (PS) - Colour: Pure white, RAL 9010. - Protection class: Isolation class II. - Impact resistance: IK07. - Ingress protection: IP40. - Door: Transparent door. - Lock: Snap-on lock. - Terminal blocks: Neutral and earth terminal blocks included. - Outdoor use: No.
- Feature
- 2-row Gamma surface consumer unit
- Feature
- Includes SPD configuration
- Feature
- 26-module DIN capacity
- Feature
- 63A rated current
- Feature
- Transparent door
- Feature
- IP40 and IK07 enclosure ratings
