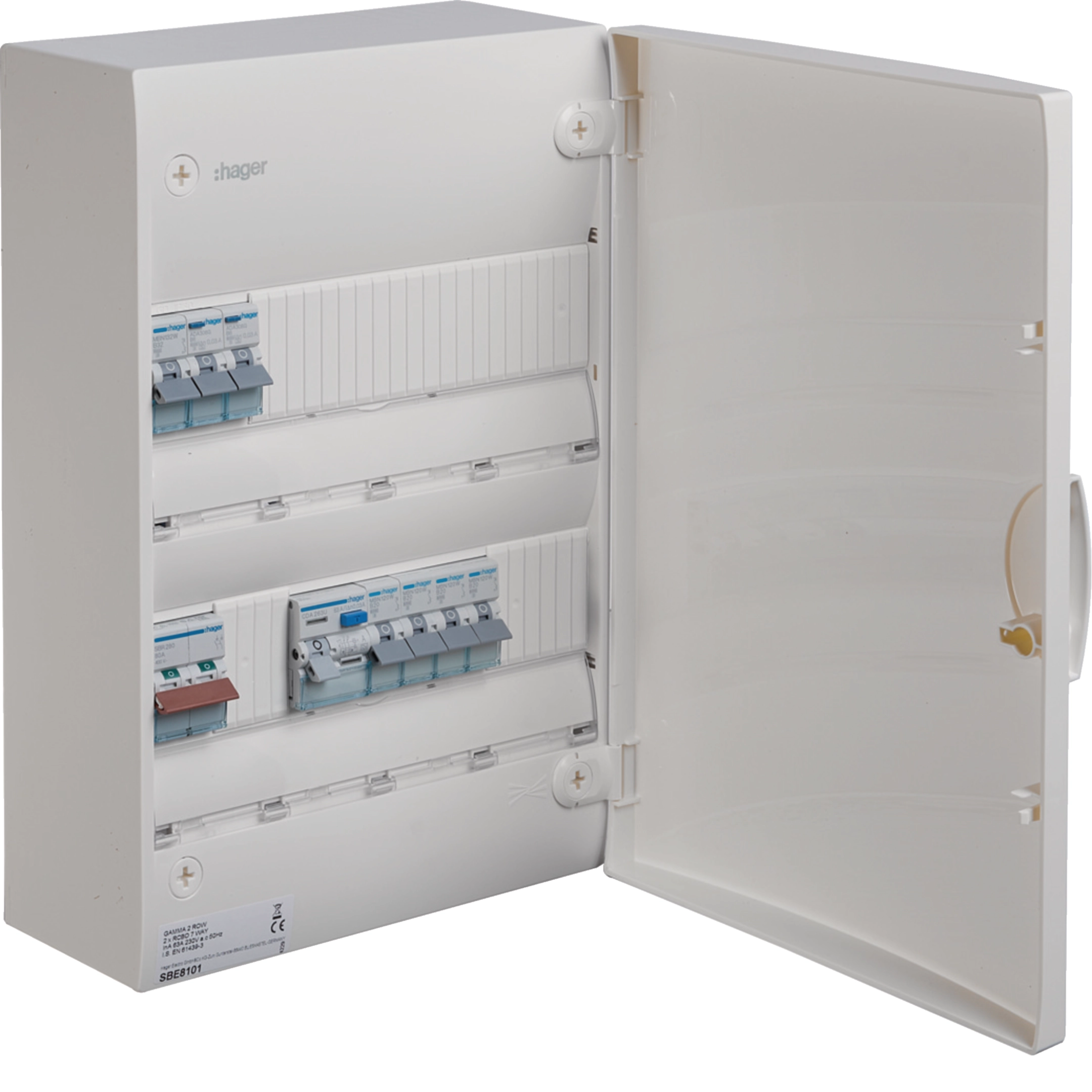

Hager Gamma 2-row 7-way consumer unit, 63 A, IP40
Hager · Hager
HAGER 2 ROW RCBO 7 WAY
- KEW code
- SBE8101
- Brand
- Hager
- Manufacturer
- Hager
- MPN
- SBE8101
- Category
- Distribution
- Specification
- - Mounting: Surface mounting. - Accessible phases: 1. - Rated current: 63 A. - Rows: 2. - Rails: 2. - Modules: 26. - Rccb in enclosure: 1. - Dimensions: 375 mm H x 250 mm W x 103 mm D. - Door: Transparent snap-on lock door. - Material: Polystyrene (PS) - Colour: RAL 9010 pure white. - Protection class: Class II. - Impact resistance: IK07. - Ingress protection: IP40 with door. - Neutral terminal block: Yes. - Earth terminal block: Yes.
- Feature
- Two-row Gamma residential consumer unit
- Feature
- 26-module capacity with 13 width units
- Feature
- Pre-fitted 1 RCD and 2 x 6A lighting RCBO configuration
- Feature
- Includes neutral and earth terminal blocks
- Feature
- Pure white insulated enclosure with transparent door
- Feature
- IP40 protection with door fitted
