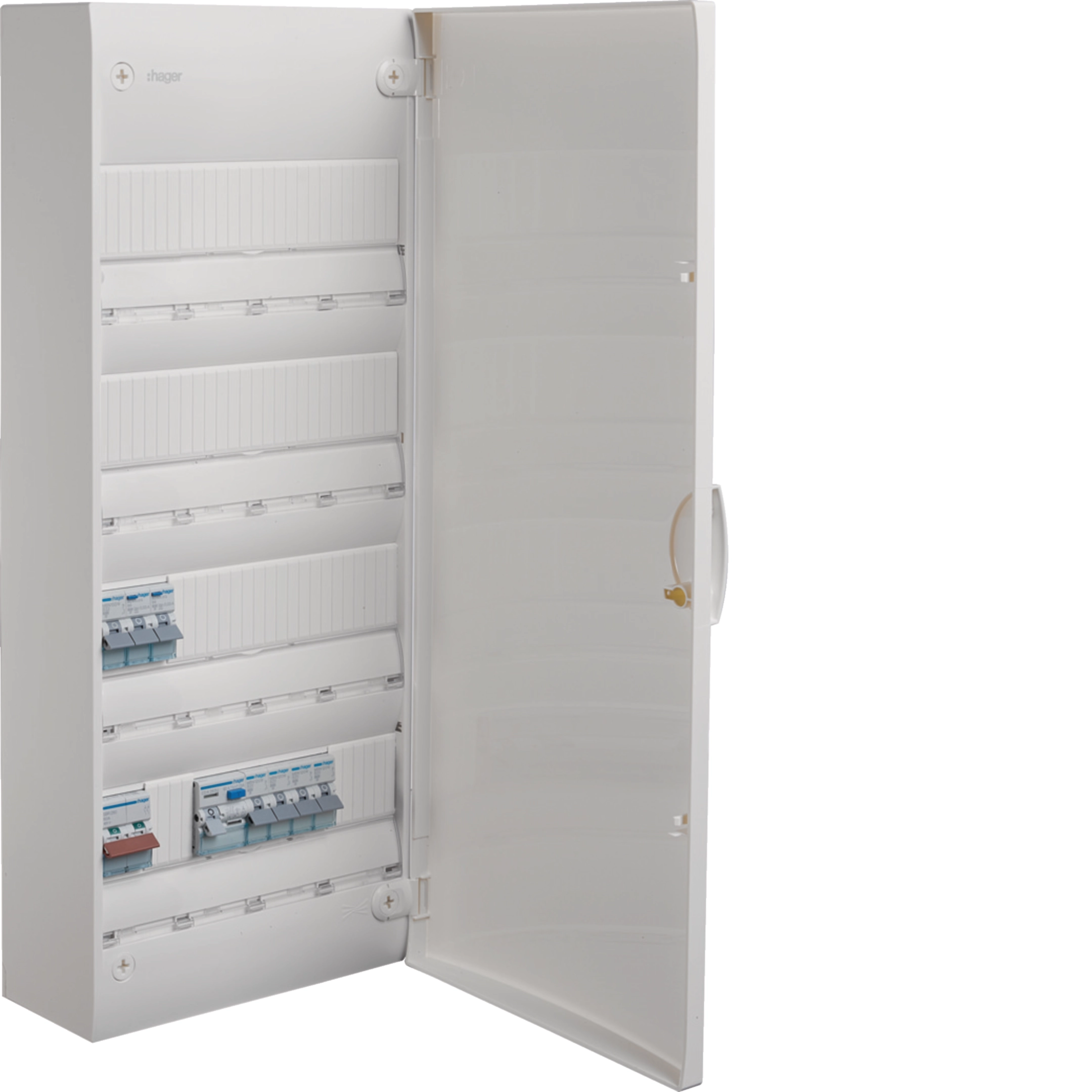

Hager Gamma 4-row consumer unit, 63 A, IP40

Hager · Hager

HAGER GAMMA 4 ROW BOARD

KEW code: SBE10101
Brand: Hager
Manufacturer: Hager
MPN: SBE10101
Category: Distribution
Specification: - Range: Gamma consumer units. - Mounting: surface mounting. - Rows: 4. - Rails: 4. - Modules: 52. - Rated current: 63A. - Accessible phases: 1. - Rccb in enclosure: 1. - Dimensions: 625 x 250 x 103mm. - Material: polystyrene PS. - Colour: pure white RAL 9010. - Ip rating: IP40. - Impact resistance: IK07. - Protection class: Isolation class II.
Feature: Four-row Gamma consumer unit
Feature: 52-module surface-mounted enclosure
Feature: Includes neutral and earth terminal blocks
Feature: Transparent snap-on door
