KEW catalogue
S4 straight resin cable joint kit — 0.75–4 mm²
No stock / backorder

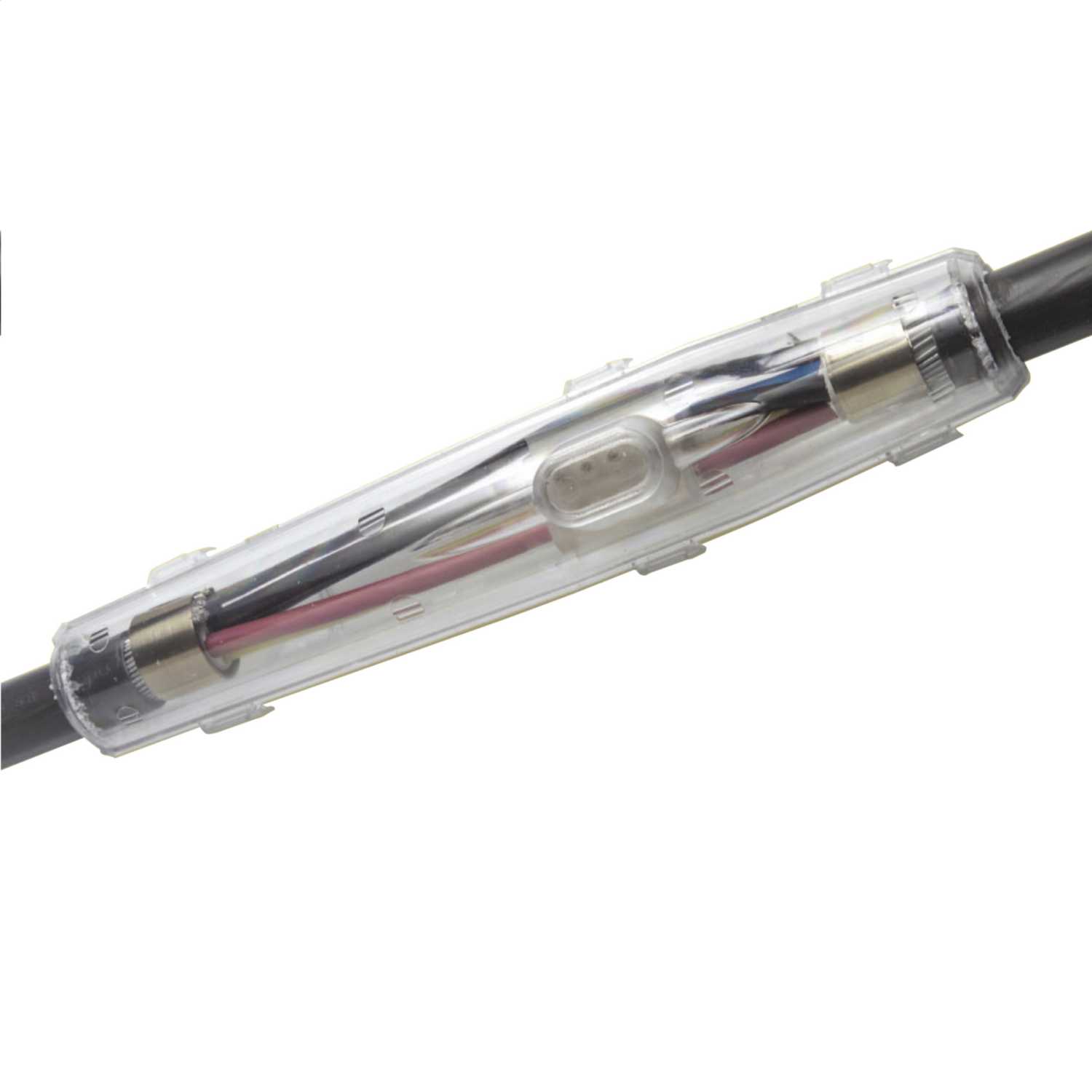

A clear resin joint kit for joining up to four-core cables from 0.75 to 4 mm², with the joint visible through the polycarbonate mould during assembly.
Straight resin joint kit for cables from 0.75 to 4 mm² with up to four cores. The clear polycarbonate mould allows the joint to be inspected during assembly. The kit includes a two-part resin pack, earth-bonding components, mechanical connectors, gloves and sealing tape.
- KEW code
- S4JK
- MPN
- S4
- Category
- Cable & Wire
- Specification
- Product type: Straight resin cable joint kit. Cable size range: 0.75–4 mm². Maximum cores: 4. Maximum cable diameter: 21 mm. Mould dimensions: 160 mm long × 30 mm diameter. Mould material: Clear polycarbonate. Rated voltage: Up to 3.6 kV.
- Feature
- Cable size range: 0.75–4 mm².
- Feature
- Maximum cores: 4.
- Feature
- Maximum cable diameter: 21 mm.
- Feature
- Mould dimensions: 160 mm long × 30 mm diameter.
