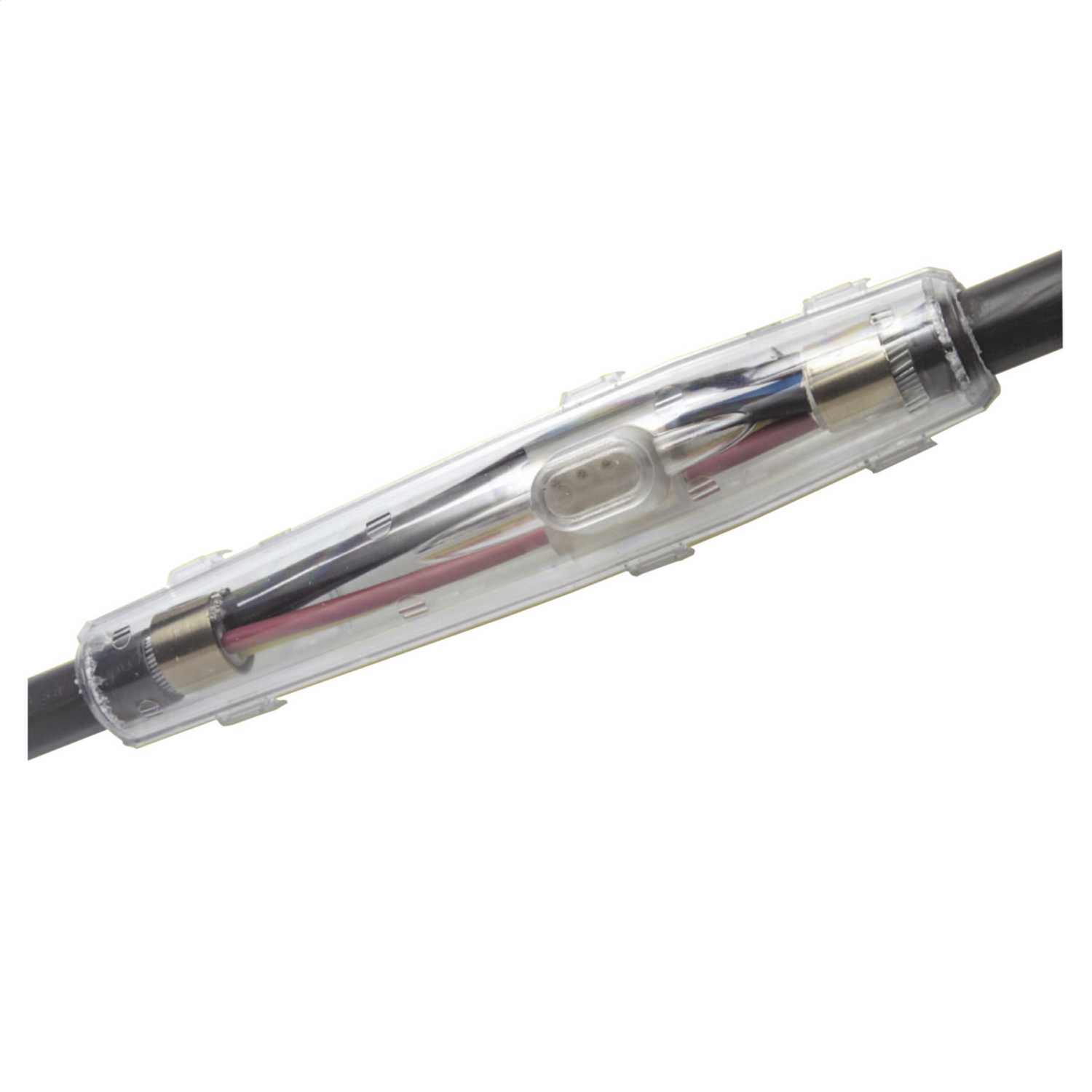

S25 Straight Resin Cable Joint Kit — 10–25 mm²
Straight resin joint kit for cables from 10 to 25 mm² with up to four cores. The clear polycarbonate mould allows the joint to be inspected during assembly. The kit includes a two-part resin pack, earth-bonding components, mechanical connectors, gloves and sealing tape.
- KEW code
- S25JK
- MPN
- S25
- Category
- Cable & Wire
- Specification
- Product type: Straight resin cable joint kit. Cable size range: 10–25 mm². Maximum cores: 4. Maximum cable diameter: 38 mm. Mould dimensions: 310 mm long × 52 mm diameter. Mould material: Clear polycarbonate. Rated voltage: Up to 3.6 kV.
- Feature
- Cable size range: 10–25 mm².
- Feature
- Maximum cores: 4.
- Feature
- Maximum cable diameter: 38 mm.
- Feature
- Mould dimensions: 310 mm long × 52 mm diameter.
