KEW catalogue

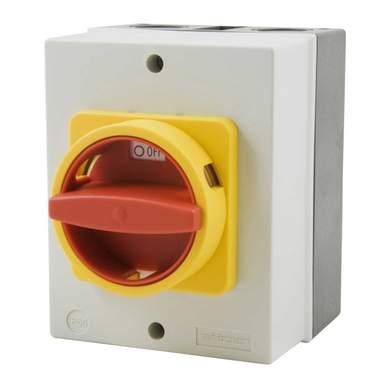

20 A 4-pole rotary isolator, IP66, 690 V
20A-4P ROTARY SW RED/YELL
- KEW code
- S20-4P
- Category
- Distribution
- Specification
- - Product type: Rotary isolator switch. - Current rating: 20 A. - Number of poles: 4 pole. - Handle colour: Red/yellow. - Enclosure colour: Grey. - Ingress protection: IP66. - Material: Polycarbonate. - Mounting: Surface. - Switching angle: 90 deg. - Voltage rating: 690 V. - Standards: IEC/EN 60947-1, IEC/EN 60947-3. - Dimensions: 100 mm x 80 mm x 65 mm.
- Feature
- 20 A four-pole rotary isolator.
- Feature
- Red/yellow handle in grey enclosure.
- Feature
- IP66 rated polycarbonate housing.
- Feature
- Padlockable for secure isolation.
- Feature
- Forced-open contacts and screw terminals.
