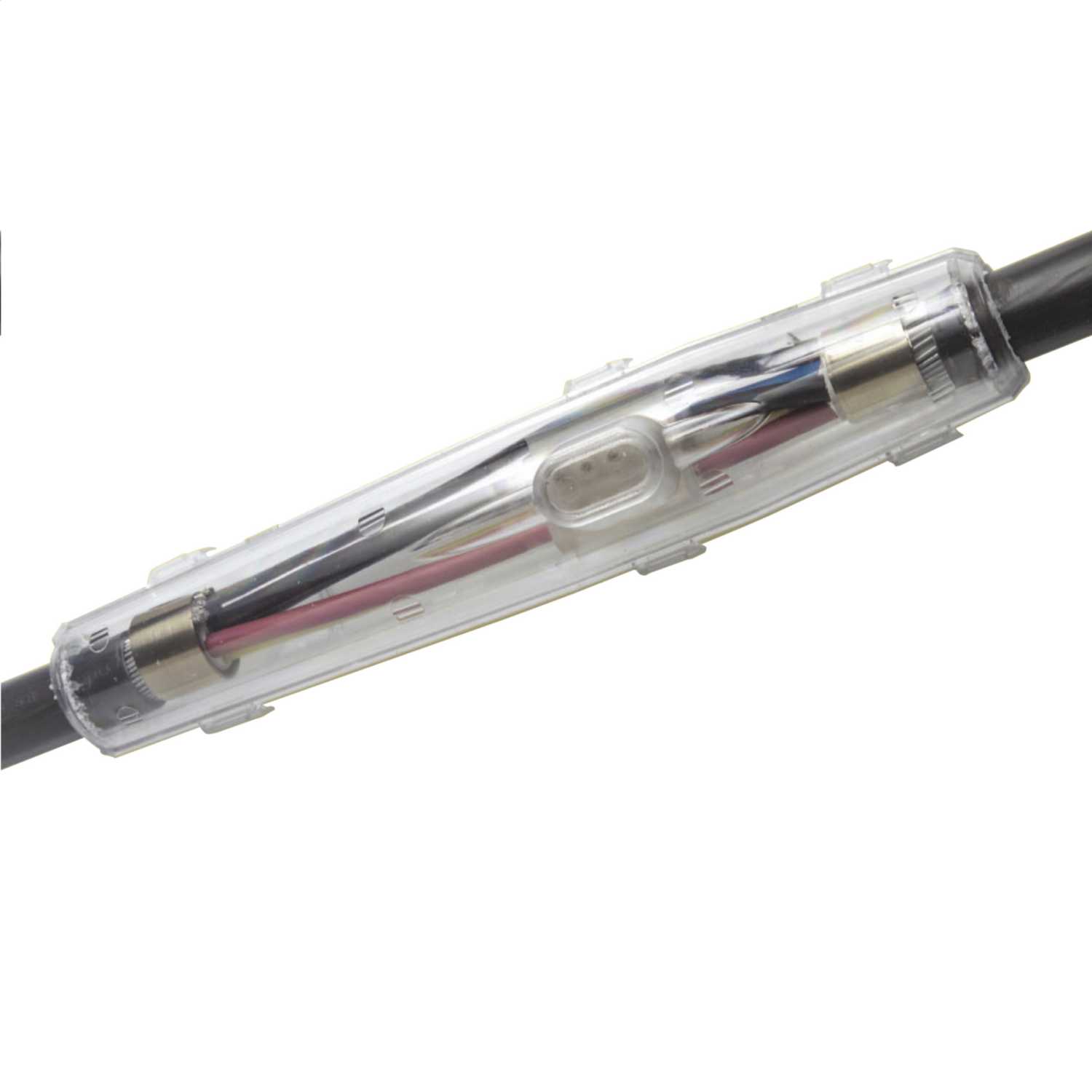

S10 straight resin cable joint kit - up to 10 mm²
Straight resin cable joint kit for joining single-core or multicore cables up to four cores and 10 mm² conductor size. The kit includes the clear mould, two-part resin, earth-bonding components, mechanical connectors, gloves, and sealing tape.
- KEW code
- S10JK
- MPN
- S10
- Category
- Cable & Wire
- Specification
- Product type: straight resin cable joint kit. Cable size range: 1.5 to 10 mm². Maximum cores: 4. Maximum cable diameter: 30 mm. Mould dimensions: 210 mm long x 38 mm diameter. Voltage rating: up to 3.6 kV. Mould material: clear polycarbonate.
- Feature
- For 1.5 to 10 mm² cables with up to four cores.
- Feature
- Clear impact-resistant joint mould.
- Feature
- Pre-measured two-part resin system.
- Feature
- Earth-bonding kit and mechanical connectors included.
- Feature
- Suitable for voltages up to 3.6 kV.
