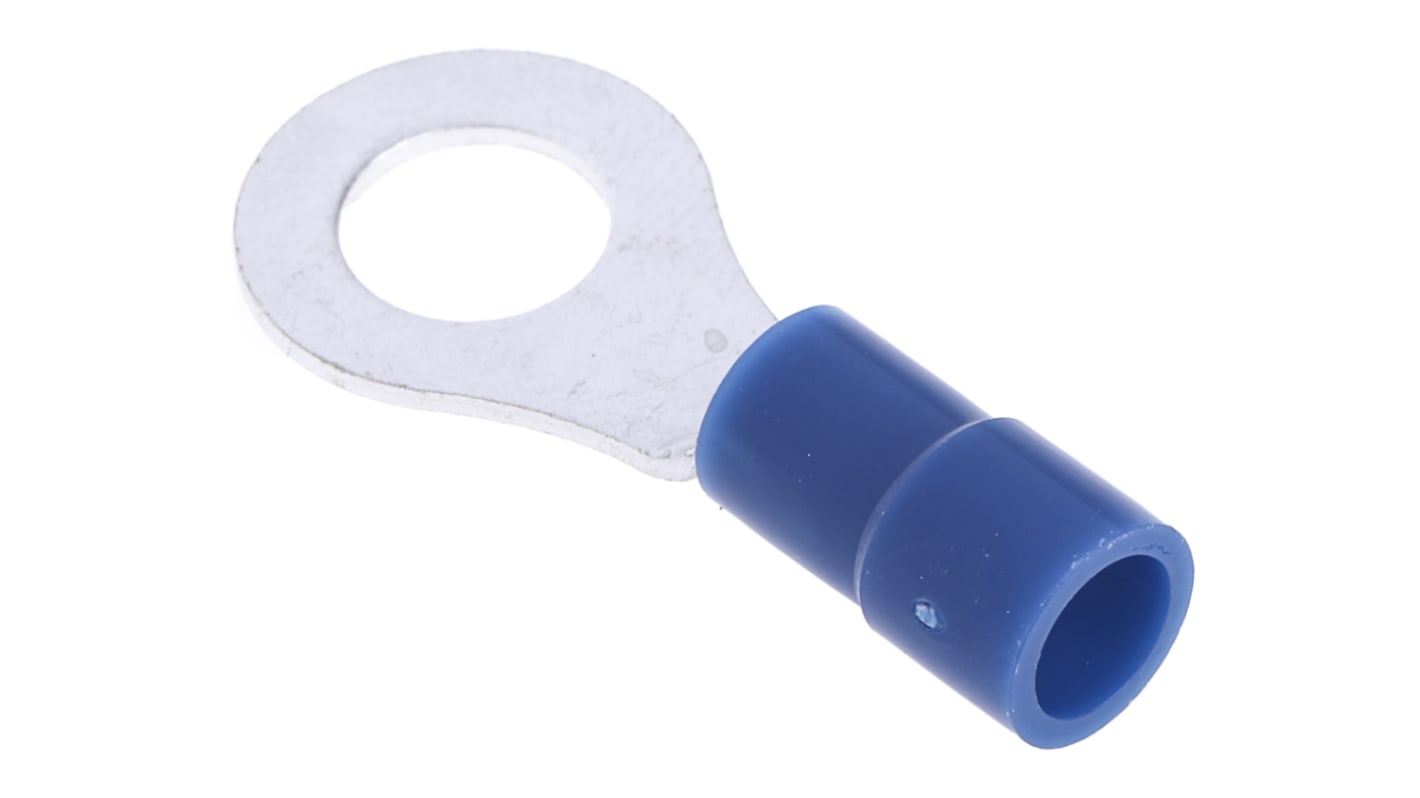

Blue 2.5 Ring terminal 6 h
BLUE 2.5 RING TERMNL 6H
- KEW code
- RT2.5/6H
- Category
- Wiring Accessories
- Specification
- - Type: Insulated crimp ring terminal. - Wire size: 1.5mm2 to 2.5mm2. - Awg range: 16 AWG to 14 AWG. - Colour: Blue. - Stud size: M6. - Inner ring diameter: 6.4mm. - Outer ring diameter: 12mm. - Contact material: Copper. - Contact plating: Tin. - Insulation material: Vinyl. - Thickness: 0.8mm. - Overall length: 27.8mm.
- Feature
- Blue insulation identifies the 1.5-2.5mm2 crimp range
- Feature
- M6 ring fits common terminals, studs and posts
- Feature
- Tin-plated cop
- Feature
- Insulated barrel helps protect and identify the termination
- Feature
- Designed for crimping with a suitable ratchet crimp tool
