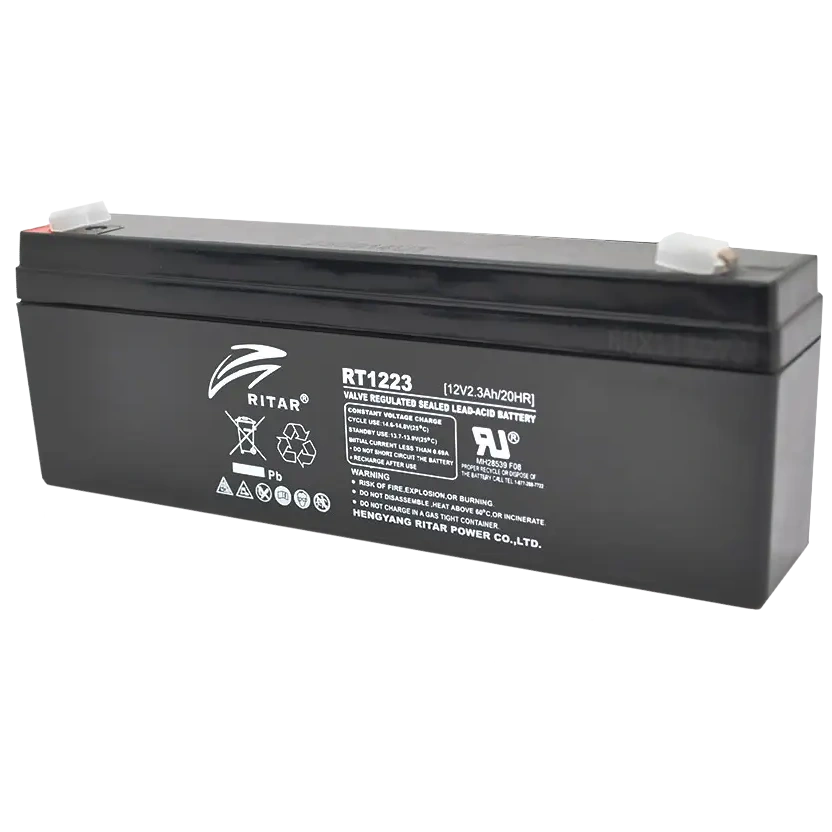

Ritar RT1223 12V 2.3Ah AGM sealed lead-acid battery
Ritar · Hengyang Ritar Power Co., Ltd.
No stock / backorder
Compact Ritar 12V 2.3Ah AGM standby battery with F1 terminal for UPS, emergency lighting, security and other sealed lead-acid backup applications.
Ritar RT1223 is a 12V 2.3Ah AGM/VRLA sealed lead-acid standby battery with an F1 terminal, intended for UPS, emergency power, security and similar standby applications.
- KEW code
- RT1223
- Brand
- Ritar
- Manufacturer
- Hengyang Ritar Power Co., Ltd.
- MPN
- RT1223
- Category
- Batteries
- Specification
- Product type: AGM / VRLA sealed lead-acid battery Model: RT1223; nominal voltage: 12V Nominal capacity: 2.3Ah at the 20-hour rate to 1.75V per cell at 25 degrees C Six cells; F1 terminal Approximate dimensions: 177mm x 35mm x 62mm body, 68mm total height Approximate internal resistance: 70mOhm at 25 degrees C Maximum discharge: 23A for 5 seconds; short circuit current: 120A Maximum charge current: 0.69A Standby charge voltage: 13.7-13.9V at 25 degrees C Cycle charge voltage: 14.6-14.8V at 25 degrees C Design life: 6-8 years in float service Operating temperature ranges: discharge -20 to 60 degrees C, charge 0 to 50 degrees C, storage -20 to 60 degrees C Self-discharge: less than 3 percent per month at 25 degrees C Applications: UPS, EPS, medical equipment, emergency lighting and security systems
- Feature
- 12V nominal voltage
- Feature
- 2.3Ah capacity at 20-hour rate
- Feature
- Sealed AGM / VRLA construction
- Feature
- F1 terminal
- Feature
- 177mm x 35mm x 68mm overall envelope
- Feature
- 6-8 year float design life
- Data sheet
- Open technical sheet
