Pink 4-core 1.5 mm² NHXMHJ-U detector/alarm cable

KEW catalogue

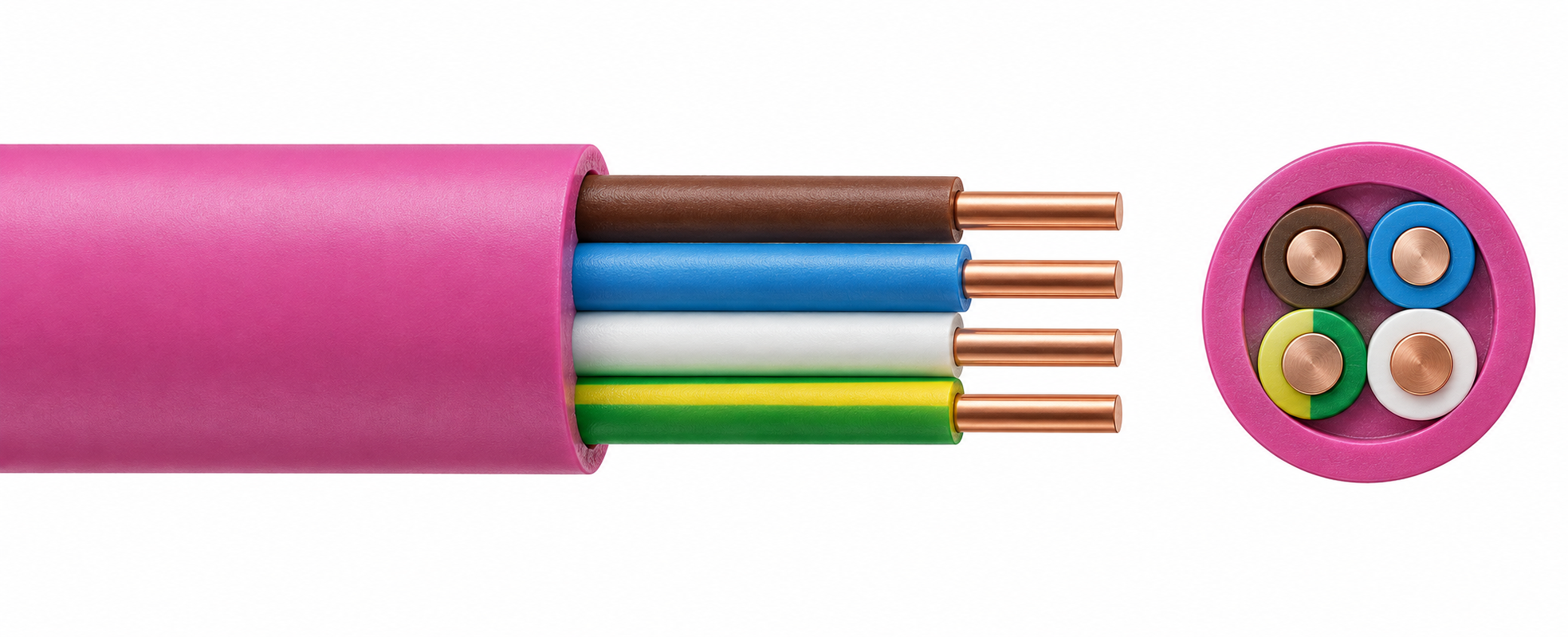

Pink 4-core 1.5 mm² NHXMHJ-U detector/alarm cable

Pink 4-core 1.5 mm² NHXMHJ-U cable for residential smoke, heat and carbon-monoxide detector wiring. The NHXMH family construction uses solid copper conductors, XLPE insulation, extruded thermoplastic filler and an LSZH outer sheath in 300/500 V variants.

KEW code
RD415
Category
Cable & Wire
Specification
Product family: NHXMHJ-U / NHXMH-J LSZH fixed wiring cable. Core count: 4. Nominal conductor area: 1.5 mm² per core. Conductor: Class 1 solid copper. Insulation: XLPE. Filler: Extruded thermoplastic. Outer sheath: LSZH. Sheath colour: Pink. Nominal voltage: 300/500 V. Image: Representative cable-family illustration; refer to the listed construction, core count and conductor size for this variant.
Feature
4-core fixed wiring construction.
Feature
1.5 mm² Class 1 solid copper conductors.
Feature
XLPE insulation and extruded thermoplastic filler.
Feature
LSZH outer sheath.
Feature
Pink outer sheath for detector circuit identification.
