KEW catalogue
EPH Controls R47 4-zone heating programmer
EPH Controls
No stock / backorder

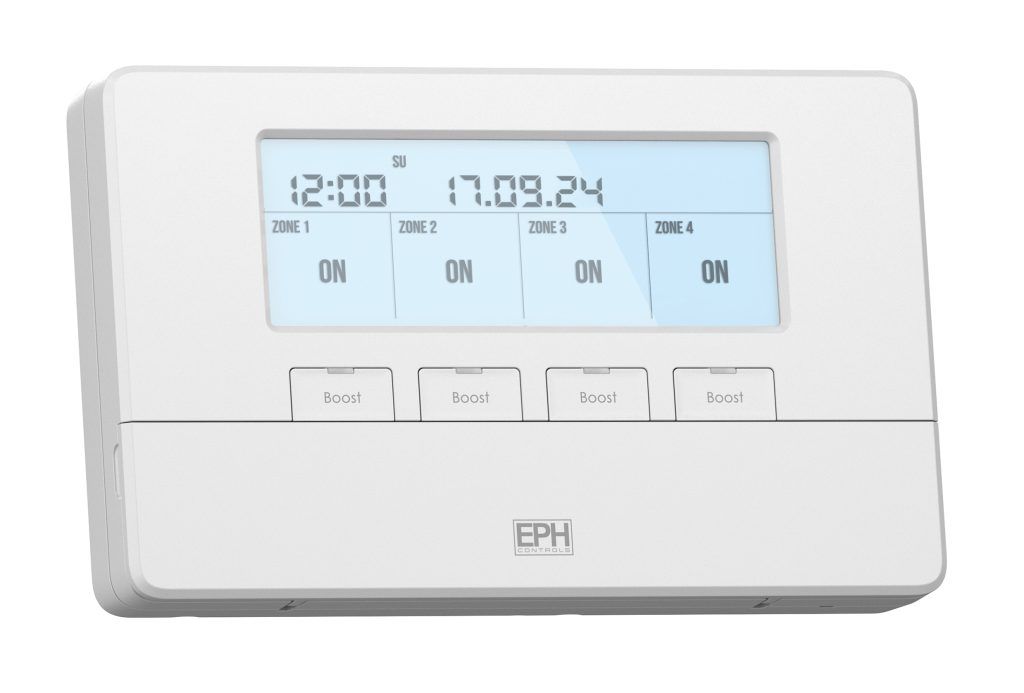

EPH Controls R47 four-zone heating programmer with 24-hour, 5/2-day and 7-day schedules.
The EPH Controls R47 controls four heating zones on a 24-hour, 5/2-day or 7-day schedule, with up to three operating periods per day. Check the 8-pin backplate and 230 V AC output against the existing programmer before ordering.
- KEW code
- R47
- Brand
- EPH Controls
- Manufacturer
- EPH Controls
- MPN
- R47
- Category
- Heating
- Specification
- Product type: 4-zone heating programmer. Model: EPH Controls R47. Programming: 24-hour, 5/2-day or 7-day. Operating periods: up to 3 per day. Switch output: 230 V AC. Contact rating: 3(1) A at 230 V AC. Backplate: 8-pin. Screen: 100 × 35 mm.
- Feature
- Four independent heating zones
- Feature
- 24-hour, 5/2-day and 7-day schedule modes
- Feature
- Three on/off periods
- Feature
- 230 V AC switch output
- Feature
- 8-pin backplate
- Feature
- 100 × 35 mm display
