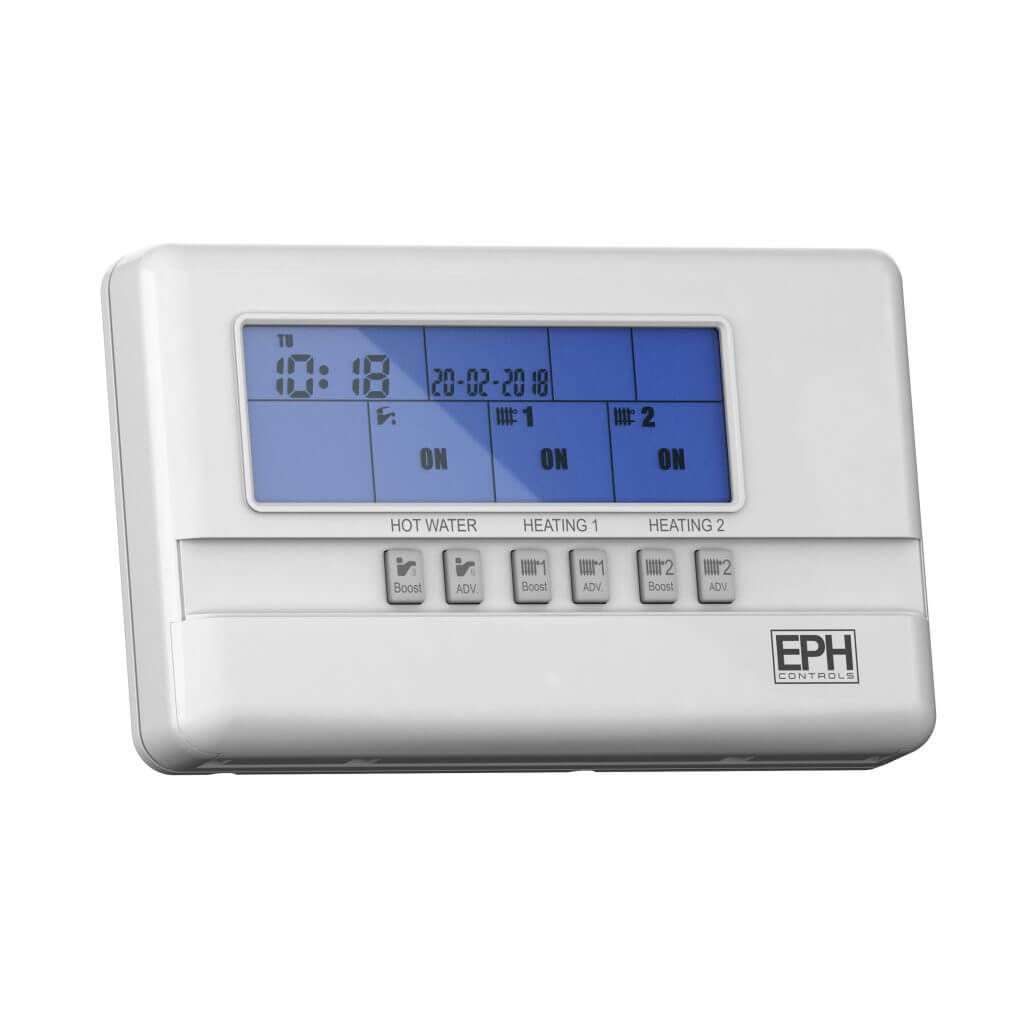

EPH Controls R37-HW Time switch, IP20
EPH Controls
Low stock
A practical three-channel heating programmer for homes with separate hot water and two heating zones, giving installers familiar hardwired control with flexible daily or weekly schedules.
EPH Controls R37-HW hardwired three-zone programmer for one hot water zone and two heating zones. The programmer supports 24-hour, 5/2-day and 7-day operating modes, with three on/off periods
- KEW code
- R37
- Brand
- EPH Controls
- Manufacturer
- EPH Controls
- MPN
- R37-HW
- Category
- Control Gear
- Specification
- - Zones: 3. - Application: One hot water zone and two heating zones. - Operating modes: 24H, 5/2D, 7D. - Switch output: 230 Vac. - Backplate: 8 pin. - Switch rating: 3(1)A 230 Vac. - Power supply: 200-240 Vac, 50-60 Hz. - Operating periods: 3 on/off periods. - Screen dimensions: 100 mm x 35 mm. - Ambient temperature range: 0 deg C to 50 deg C on product page; installation instructions list 0 deg C to 35 deg C. - Ip rating: IP20. - Functions: Boost, advance, holiday mode, keypad lock, frost protection.
- Feature
- Controls hot water plus two heating zones
- Feature
- Selectable 24-hour, 5/2-day or 7-day scheduling
- Feature
- Three on/off periods
- Feature
- Boost and advance functions for temporary overrides
- Feature
- Built-in frost protection and keypad lock
- Feature
- 8-pin hardwired backplate format
