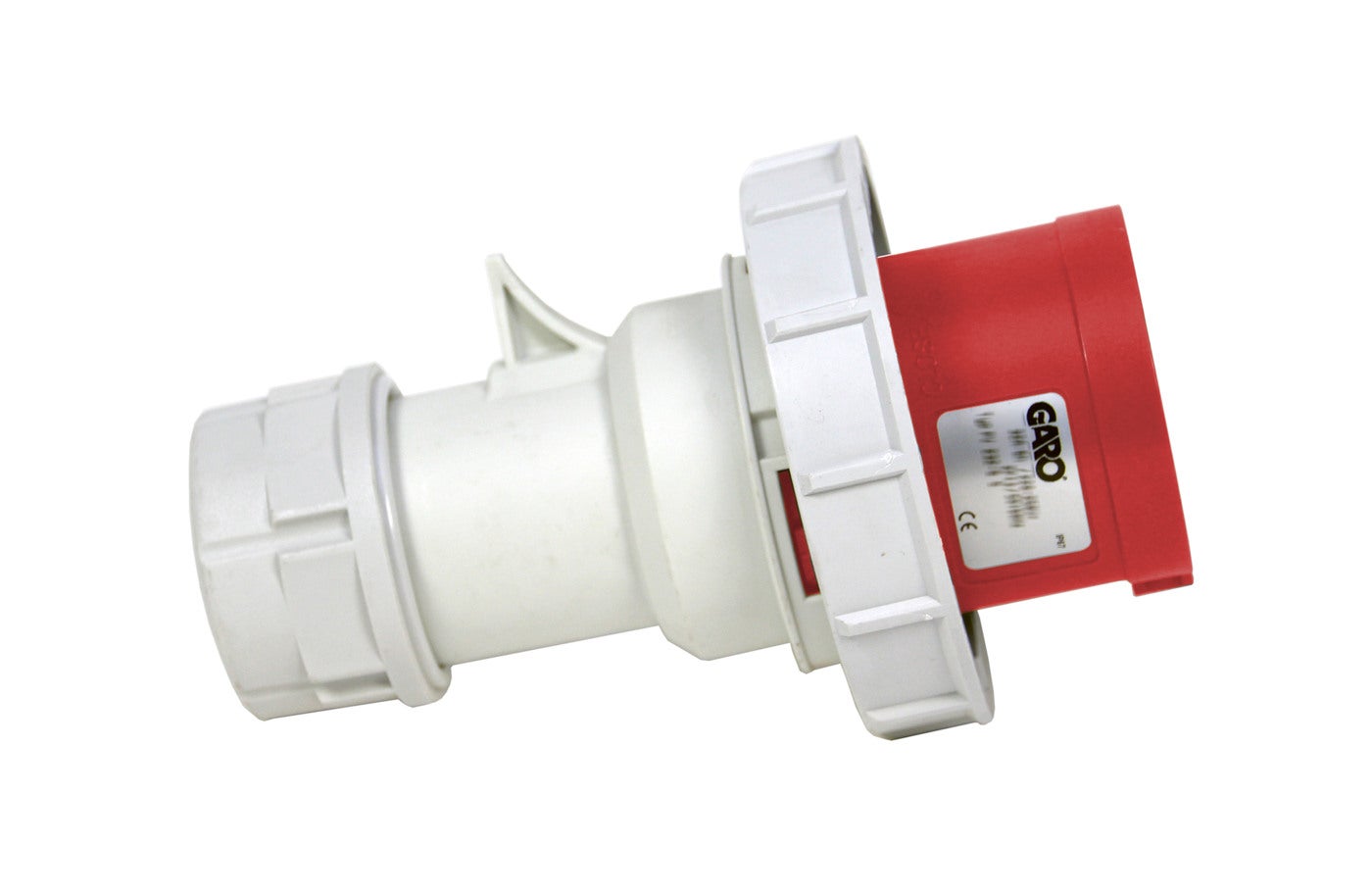

Garo PV432-6S 32 A 5-pin 200–415 V IP67 industrial plug
Garo
Low stock
32 A five-pin red IP67 industrial plug for 200–415 V three-phase circuits.
Match the connector to the mating plug or socket by current rating, voltage, pole configuration and earth-contact clock position. Select the required ingress protection for the complete connection and check cable capacity and strain relief before assembly.
- KEW code
- PV432-6S
- Brand
- Garo
- Manufacturer
- Garo
- MPN
- PV432-6S
- Category
- Plugs & Adaptors
- Specification
- Product type: Industrial plug top. Rated current: 32 A. Pin configuration: 5 pin, 3P+N+E. Operating voltage: 200–415 V. Frequency: 50/60 Hz. Clock position: 6 h. Colour code: Red. Ingress protection: IP67. Cable size: 2.5–6 mm². Standards: IEC 60309-1 and IEC 60309-2.
- Feature
- 32 A, 5-pin 3P+N+E format.
- Feature
- 200–415 V with red 6 h coding.
- Feature
- IP67 protection.
- Feature
- Accepts 2.5–6 mm² cable.
