1.5 mm² 6181B Double-Insulated Single-Core Cable — Blue/White

KEW catalogue

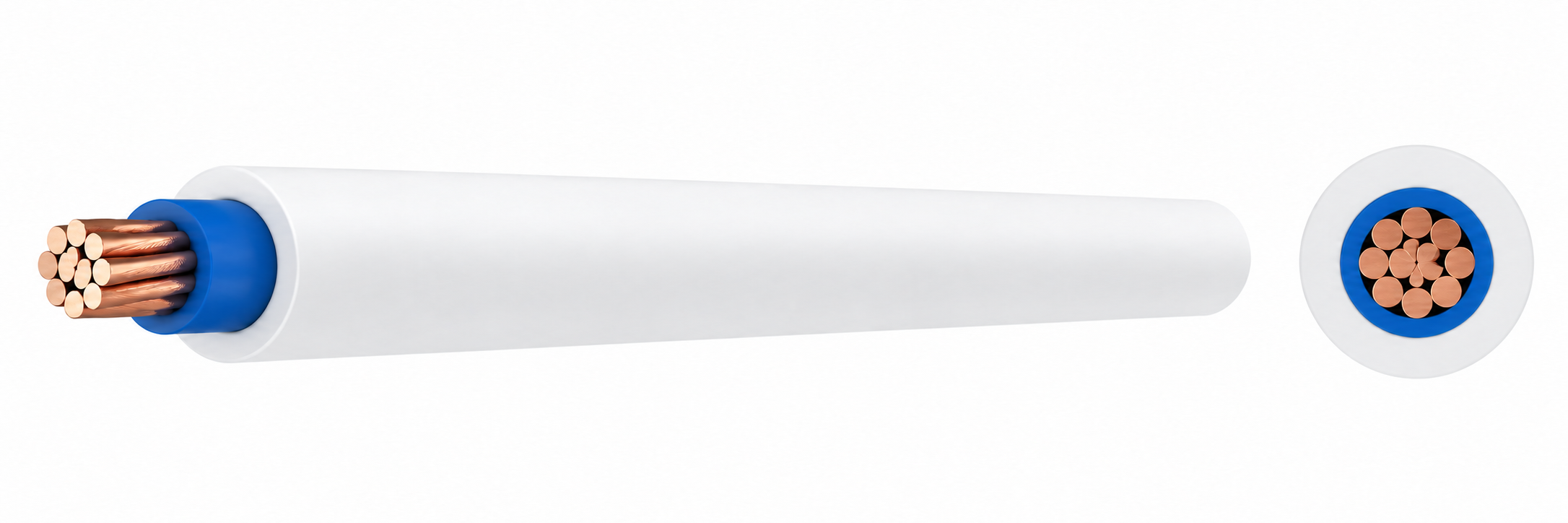

1.5 mm² 6181B Double-Insulated Single-Core Cable — Blue/White

Single-core 1.5 mm² surface-wiring cable with blue XLPE insulation and a white low-smoke, zero-halogen outer sheath. The two insulating layers suit fixed surface-wiring applications where a separately sheathed conductor is required. Rated at 450/750 V. Tell us the length required when requesting a quote.

KEW code
PP/1.5/LSF/BL
Category
Cable & Wire
Specification
Cable type: 6181B double-insulated single-core cable. Conductor size: 1.5 mm². Conductor: Copper. Insulation: Cross-linked polyethylene (XLPE). Core colour: Blue. Outer sheath: Low smoke zero halogen (LSZH). Sheath colour: White. Rated voltage: 450/750 V. Supply length: Tell us the length required when requesting a quote. Image: Representative family illustration; conductor construction and core colour may differ from the illustration.
Feature
1.5 mm² single copper conductor.
Feature
Blue XLPE core insulation.
Feature
White LSZH outer sheath.
Feature
450/750 V rated voltage.
