KEW catalogue

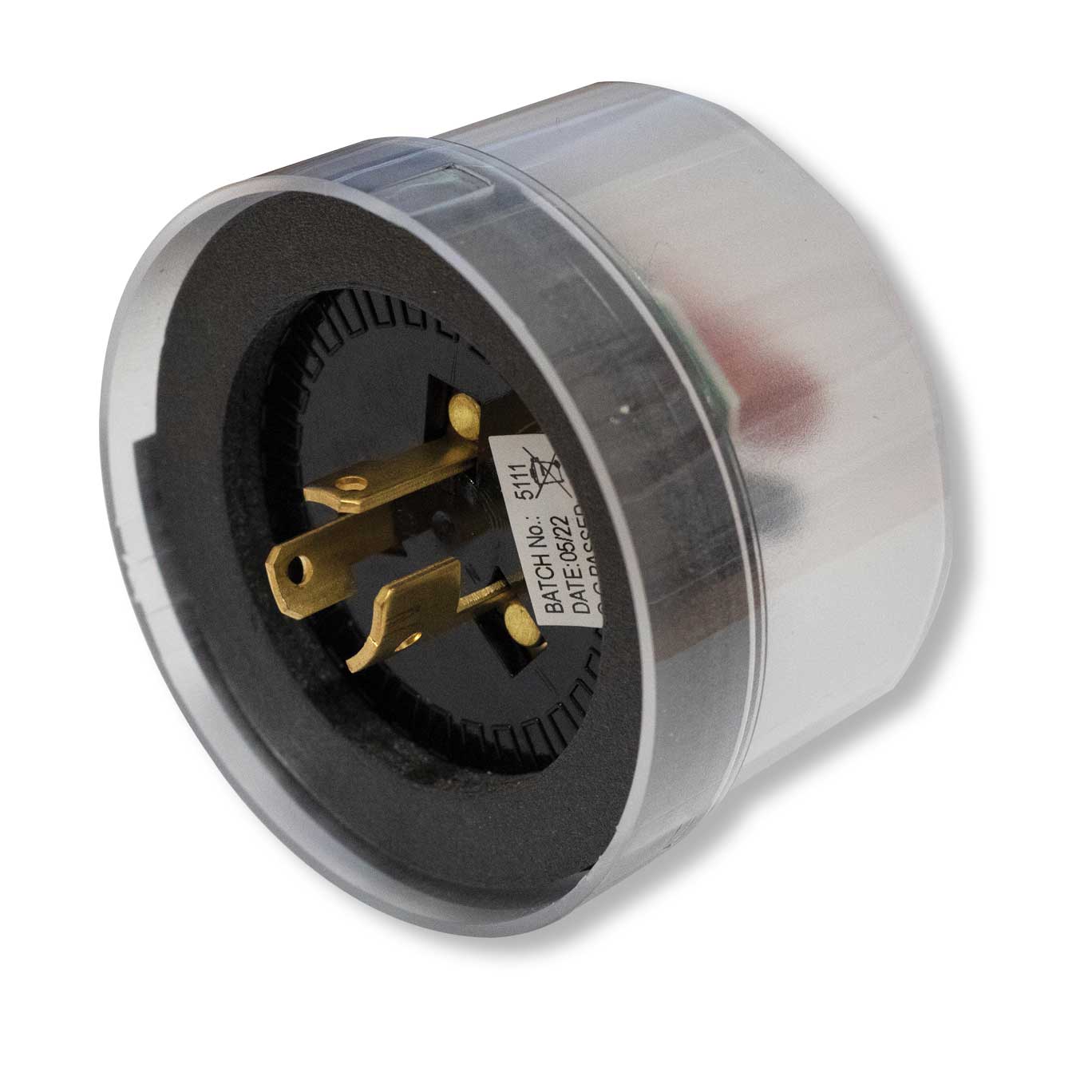

Replacement twist-lock photocell head, IP54
Solas Geal Distribution Ltd
Low stock
The PEC-HEAD is a replacement photocell head for the PEC-KIT assembly. Its photodiode sensor switches a connected lighting load in response to ambient light, with an IP54-rated housing for external applications.
- KEW code
- PEC-HEAD
- Manufacturer
- Solas Geal Distribution Ltd
- MPN
- PEC-HEAD
- Category
- Lighting
- Specification
- Model: PEC-HEAD Electronic-relay photocell head for use with PEC-KIT 220–240 V AC, 50/60 Hz Photodiode switching: on below 20 lux; off above 80 lux 1000 W tungsten / 1800 VA inductive load IP54; operating temperature -40 to +70 °C 10–15 second switching delay; maximum power consumption 0.25 W UV-stabilised polycarbonate; BS 5972 twist-lock terminal 3650 switching cycles; 3-year guarantee
- Feature
- Electronic-relay photocell head for use with PEC-KIT
- Feature
- 220–240 V AC, 50/60 Hz
- Feature
- Photodiode switching: on below 20 lux; off above 80 lux
- Feature
- 1000 W tungsten / 1800 VA inductive load
- Feature
- IP54; operating temperature -40 to +70 °C
- Feature
- 10–15 second switching delay; maximum power consumption 0.25 W
- Feature
- UV-stabilised polycarbonate; BS 5972 twist-lock terminal
- Feature
- 3650 switching cycles; 3-year guarantee
- Data sheet
- Open technical sheet
