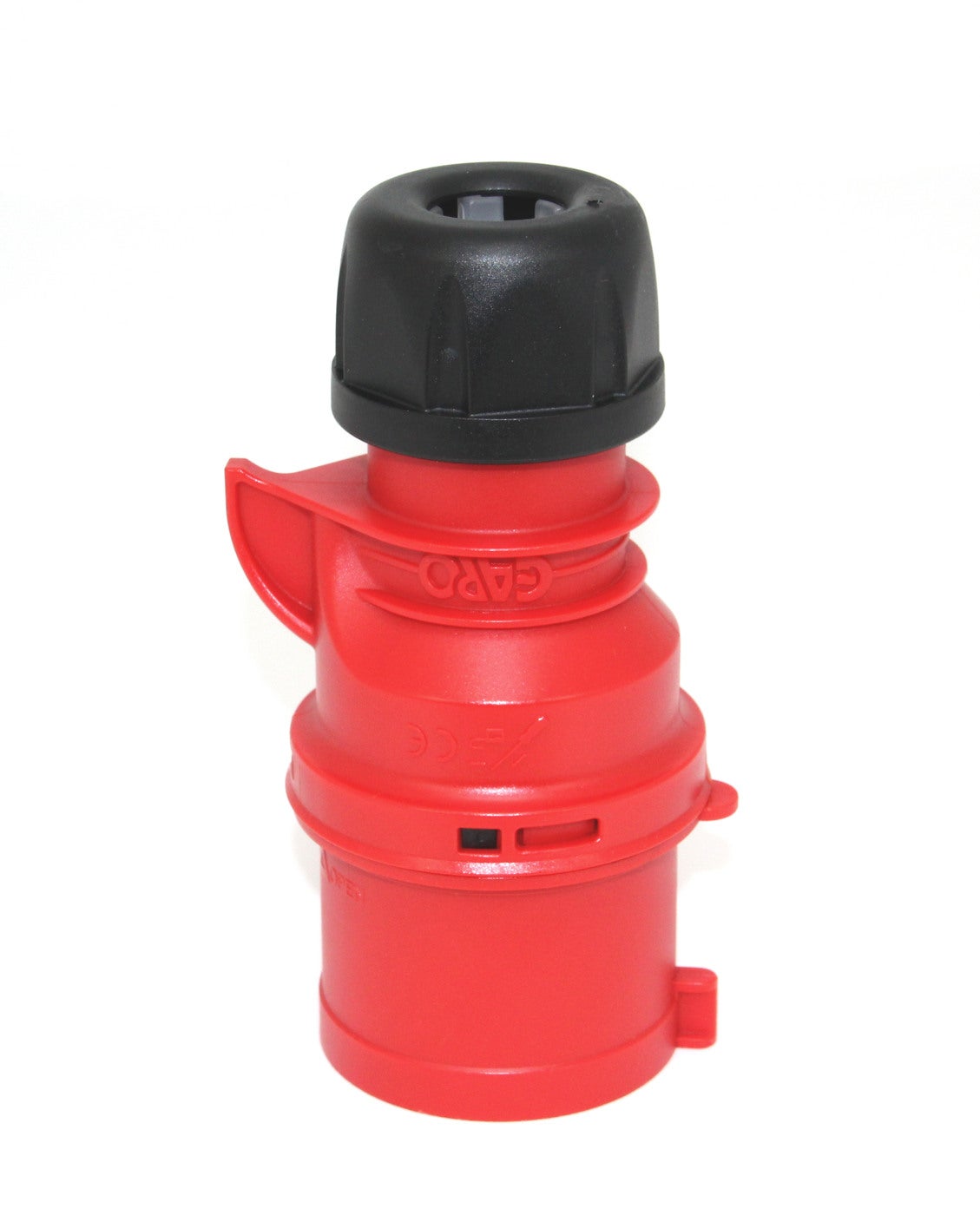

Garo P416-6S 16 A 5-pin 230–400 V industrial plug
Garo
In stock
16 A five-pin red industrial plug top for 230–400 V three-phase circuits with IP44 protection.
Match the connector to the mating plug or socket by current rating, voltage, pole configuration and earth-contact clock position. Select the required ingress protection for the complete connection and check cable capacity and strain relief before assembly.
- KEW code
- P416-6S
- Brand
- Garo
- Manufacturer
- Garo
- MPN
- P416-6S
- Category
- Plugs & Adaptors
- Specification
- Product type: Industrial plug top. Rated current: 16 A. Pin configuration: 5 pin, 3P+N+E. Operating voltage: 230–400 V. Frequency: 50/60 Hz. Clock position: 6 h. Colour code: Red. Ingress protection: IP44. Cable size: 1–2.5 mm². Standards: IEC 60309-1 and IEC 60309-2.
- Feature
- 16 A, 5-pin 3P+N+E format.
- Feature
- 230–400 V with red 6 h coding.
- Feature
- IP44 protection.
- Feature
- Accepts 1–2.5 mm² cable.
