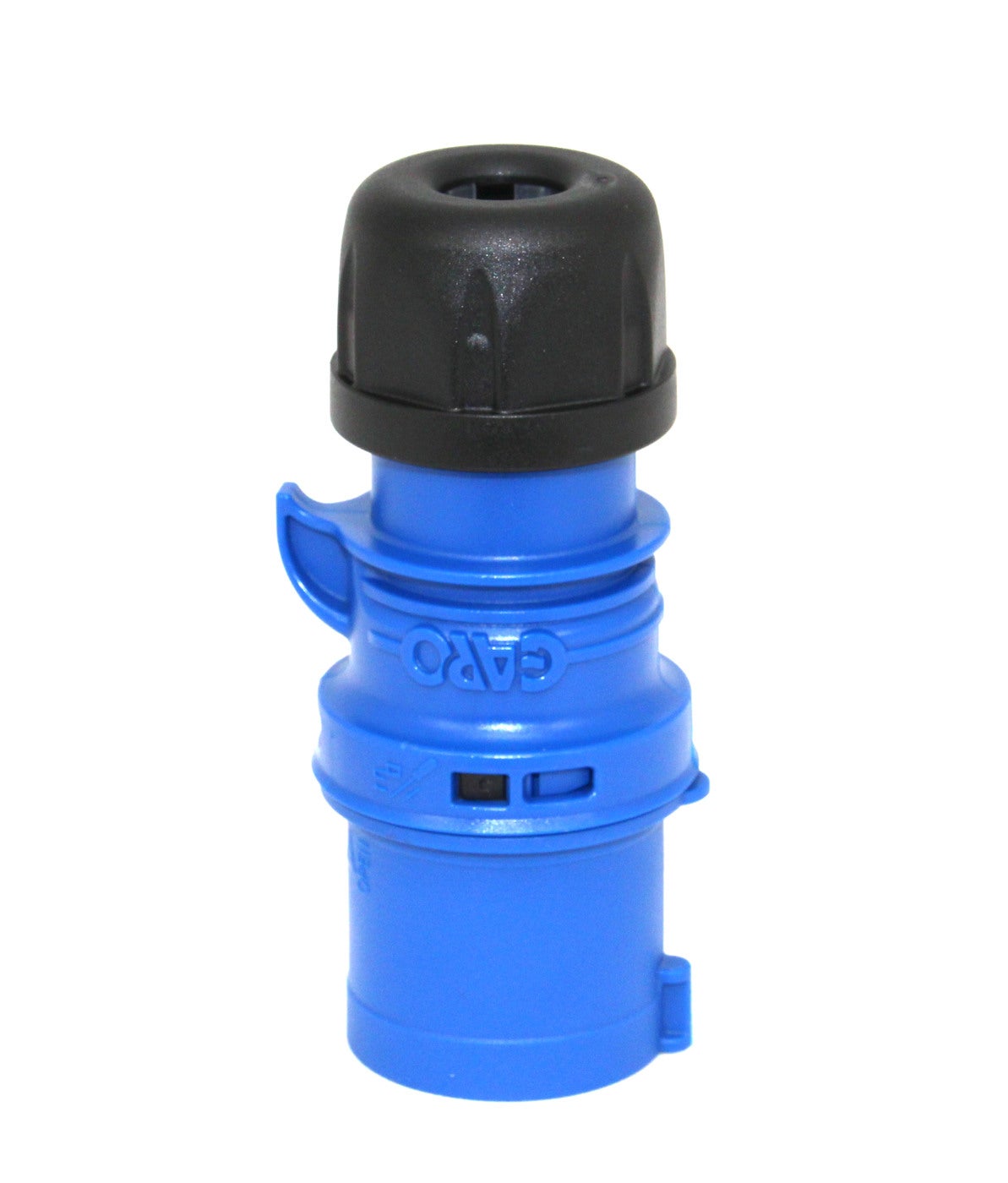

Garo P216-6S 16 A 3-pin 200–250 V industrial plug
Garo
In stock
16 A three-pin industrial plug top for 200–250 V circuits with blue 6 h coding and IP44 protection.
Match the connector to the mating plug or socket by current rating, voltage, pole configuration and earth-contact clock position. Select the required ingress protection for the complete connection and check cable capacity and strain relief before assembly.
- KEW code
- P216-6S
- Brand
- Garo
- Manufacturer
- Garo
- MPN
- P216-6S
- Category
- Plugs & Adaptors
- Specification
- Product type: Industrial plug top. Rated current: 16 A. Pin configuration: 3 pin, 2P+E. Operating voltage: 200–250 V. Frequency: 50/60 Hz. Clock position: 6 h. Colour code: Blue. Ingress protection: IP44. Cable size: 1–2.5 mm². Standards: IEC 60309-1 and IEC 60309-2.
- Feature
- 16 A, 3-pin 2P+E format.
- Feature
- 200–250 V with blue 6 h coding.
- Feature
- IP44 protection.
- Feature
- Accepts 1–2.5 mm² cable.
