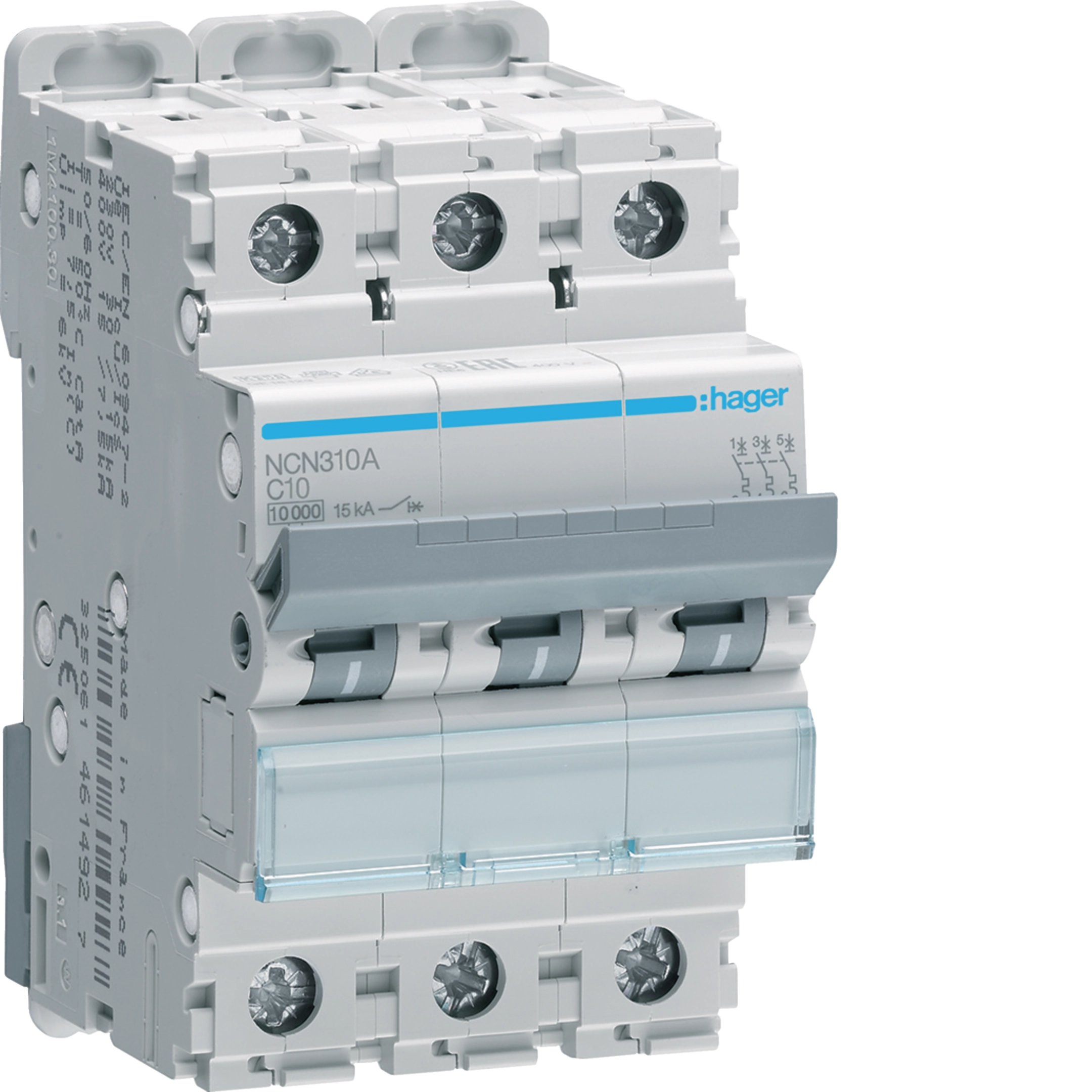

Hager 10 A three-pole C-curve MCB, 10/15 kA
Hager · Hager
HAGR 3P 10A MCB C 10/15KA
- KEW code
- NCN310A
- Brand
- Hager
- Manufacturer
- Hager
- MPN
- NCN310A
- Category
- Distribution
- Specification
- - Poles: 3P. - Curve: C. - Rated current a: 10. - Rated voltage v ac: 400. - Breaking capacity icn ka: 10. - Breaking capacity icu ka at 400v: 15. - Breaking capacity icu ka at 230v: 30. - Module count: 3. - Rated frequency hz: 50, 60. - IP rating: IP20. - Mounting: DIN rail. - Terminal top: screw terminal. - Terminal bottom: biconnect. - Conductor capacity mm2: rigid 1-35, flexible 1-25. - Dimensions: height 83 mm, width 52.5 mm, depth 70 mm.
- Feature
- 3 poles, C curve
- Feature
- 10A rated current
- Feature
- 10kA Icn
- Feature
- 3 module width
