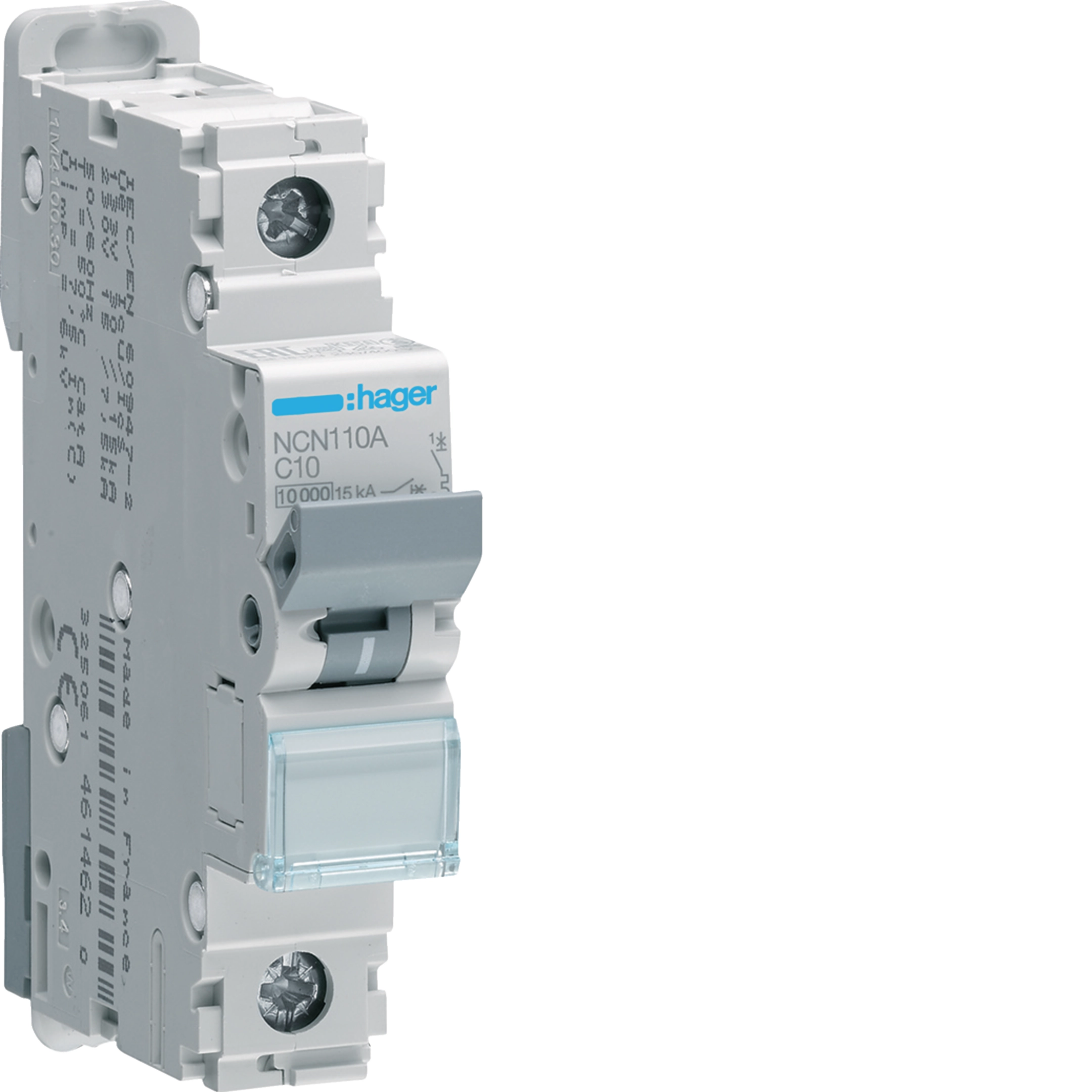

Hager 10 A single-pole C-curve MCB, 10/15 kA

Hager · Hager

HAGER 10A MCB 10/15K `C`

KEW code: NCN110A
Brand: Hager
Manufacturer: Hager
MPN: NCN110A
Category: Distribution
Specification: - Poles: 1P. - Curve: C. - Rated current a: 10. - Rated voltage v ac: 230, 400. - Breaking capacity icn ka: 10. - Breaking capacity icu ka: 15. - Module count: 1. - Rated frequency hz: 50, 60. - IP rating: IP20. - Mounting: DIN rail. - Terminal top: screw terminal. - Terminal bottom: biconnect. - Conductor capacity mm2: rigid 1-35, flexible 1-25. - Dimensions: height 83 mm, width 17.5 mm, depth 70 mm.
Feature: 1 pole, C curve
Feature: 10A rated current
Feature: 10kA Icn / 15kA Icu
Feature: 1 module wide
