KEW catalogue

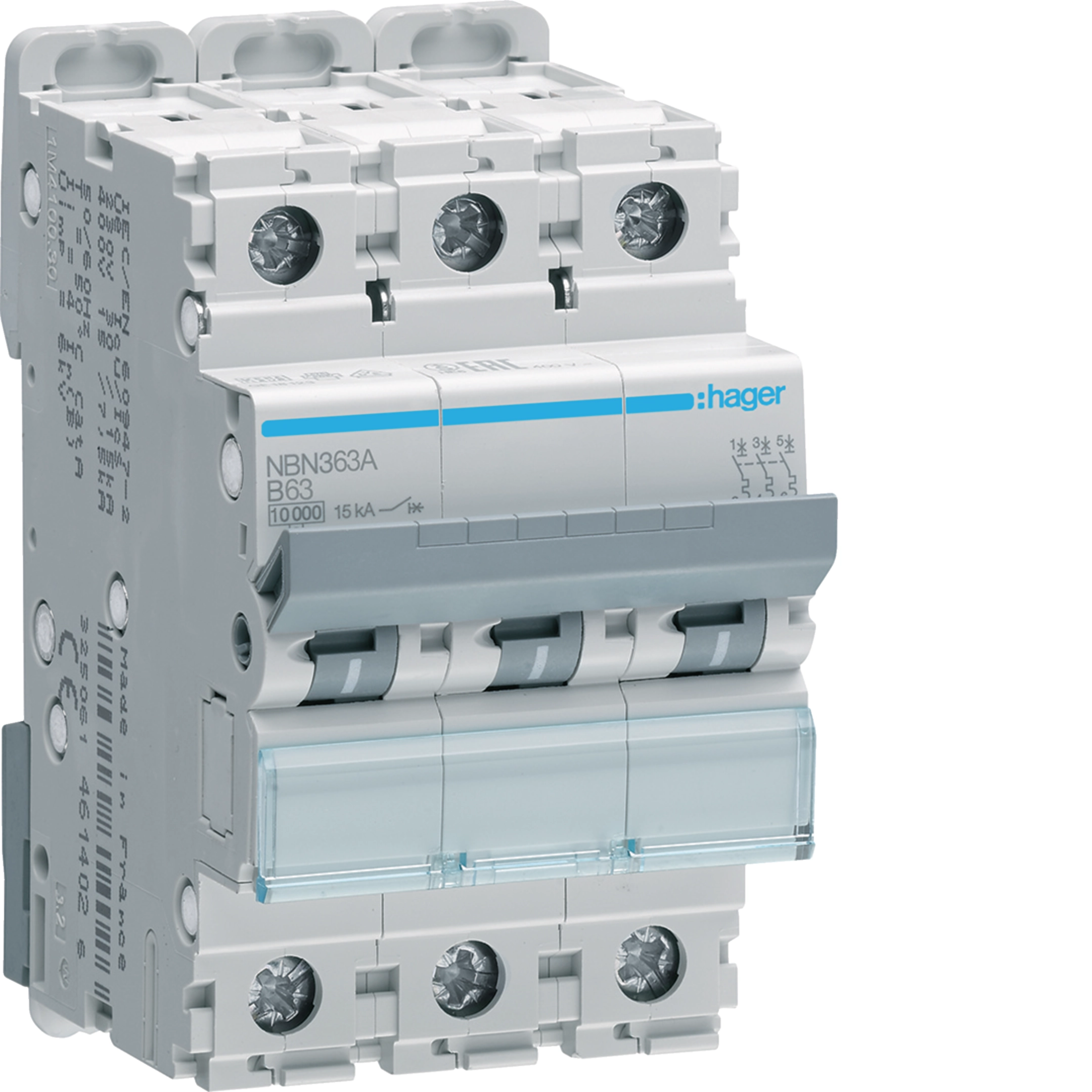

Hager 63 A three-pole B-curve MCB, 15 kA

Hager · Hager

HAG 3P MCB B63A 3M 15KA

KEW code: NBN363A
Brand: Hager
Manufacturer: Hager
MPN: NBN363A
Category: Distribution
Specification: - Poles: 3P. - Curve: B. - Rated current a: 63. - Rated voltage v ac: 400. - Breaking capacity icn ka: 10. - Breaking capacity ics ka: 15. - Breaking capacity icu ka: 15. - Module count: 3. - Rated frequency hz: 50, 60. - IP rating: IP20. - Mounting: DIN rail. - Terminal top: screw terminal. - Terminal bottom: biconnect. - Conductor capacity mm2: rigid 1-35, flexible 1-25. - Dimensions: height 83 mm, width 52.5 mm, depth 70 mm.
Feature: 3 poles, B curve
Feature: 63A rated current
Feature: 10kA Icn
Feature: 3 module width
