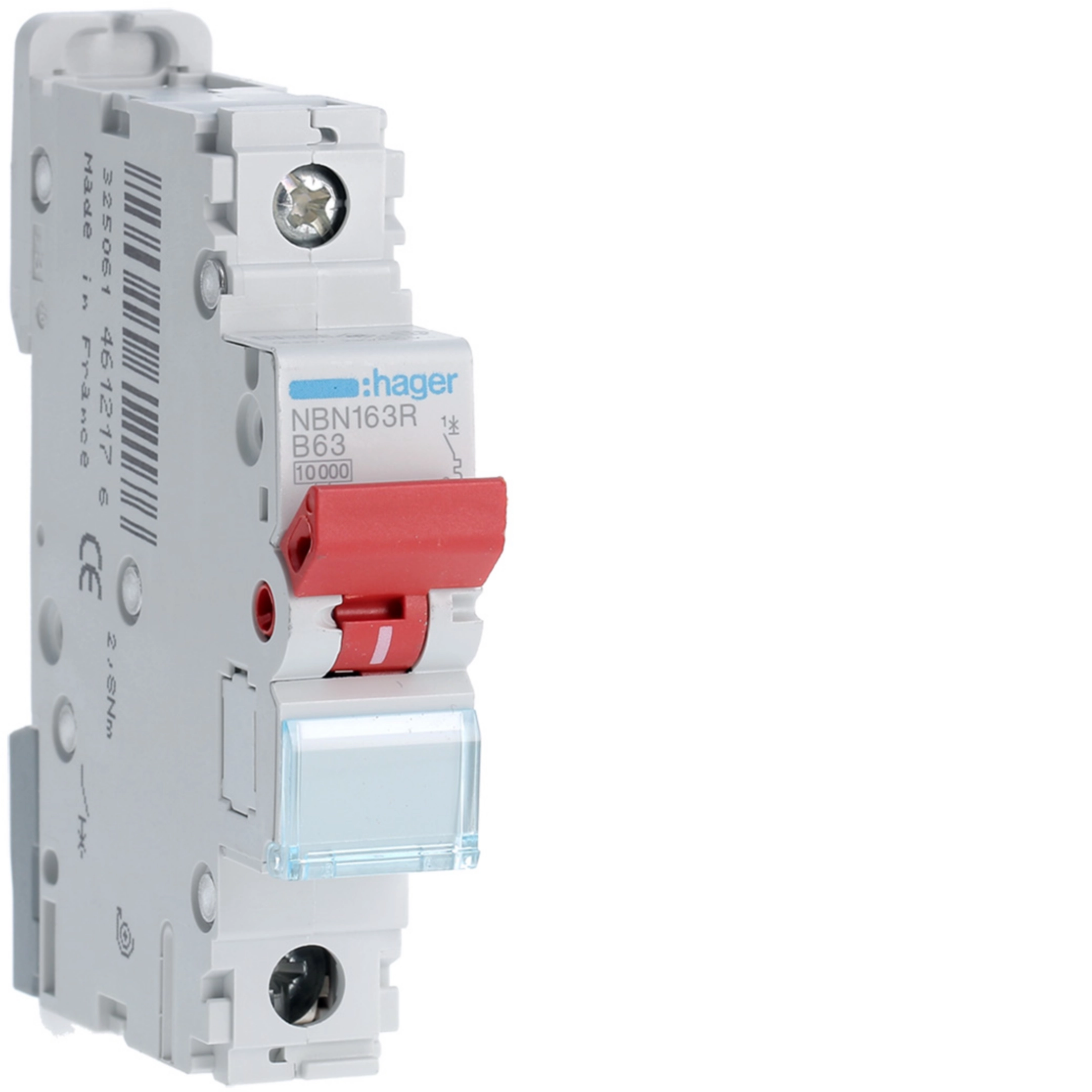

Hager 63 A single-pole B-curve MCB, IP20

Hager · Hager

HAGER 1P MCB 63A B TYPE

KEW code: NBN163R
Brand: Hager
Manufacturer: Hager
MPN: NBN163R
Category: Distribution
Specification: - Poles: 1P. - Curve: B. - Rated current a: 63. - Rated voltage v ac: 230, 400. - Breaking capacity icn ka: 10. - Breaking capacity icu ka: 15. - Service breaking capacity ics ka at 230v: 7.5. - Module count: 1. - IP rating: IP20. - Mounting: DIN rail. - Terminal top: screw terminal. - Terminal bottom: biconnect. - Dimensions: height 83 mm, width 17.5 mm, depth 70 mm.
Feature: 1 pole, B curve
Feature: 63A rated current
Feature: 10kA Icn / 15kA Icu
Feature: 1 module wide
