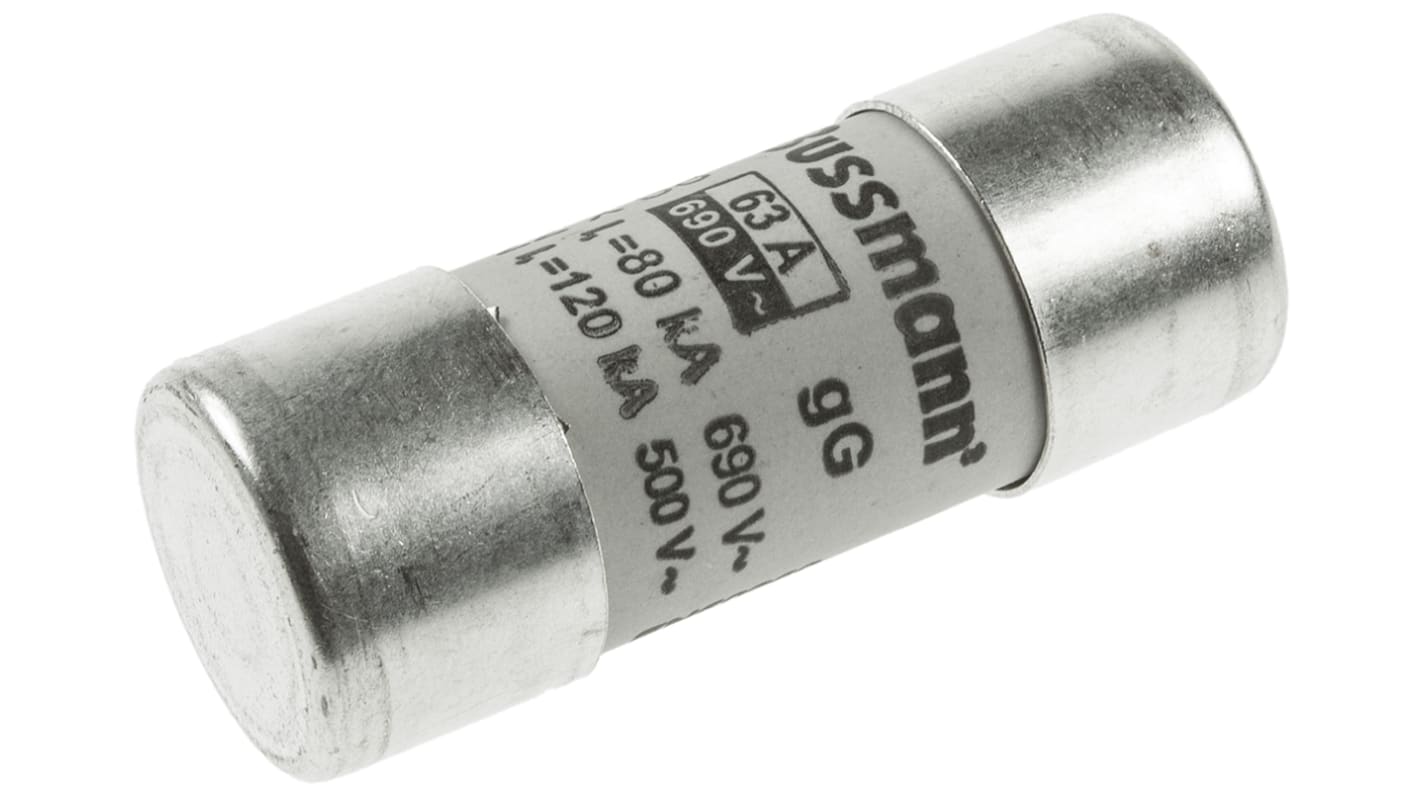

C22G63 General-purpose 22 × 58 HRC fuse-link 63 A
63 A BARREL FUSE 22 X 58
- KEW code
- ME63
- MPN
- C22G63
- Category
- Distribution
- Specification
- - Current rating: 63. - Fuse size mm: 22 x 58. - Rated voltage ac v: 690. - Rated voltage dc v: 250. - Characteristic: gG. - Body material: Ceramic. - Connection type: Ferrule. - Mounting: Clip. - Breaking capacity ac ka: 120. - Breaking capacity dc ka at 250v: 100. - Rated current power dissipation w: 6.9.
- Feature
- 22x58 cylindrical fuse size
- Feature
- 63A current rating
- Feature
- gG general-purpose characteristic
- Feature
- Ceramic body
- Feature
- Ferrule termination
