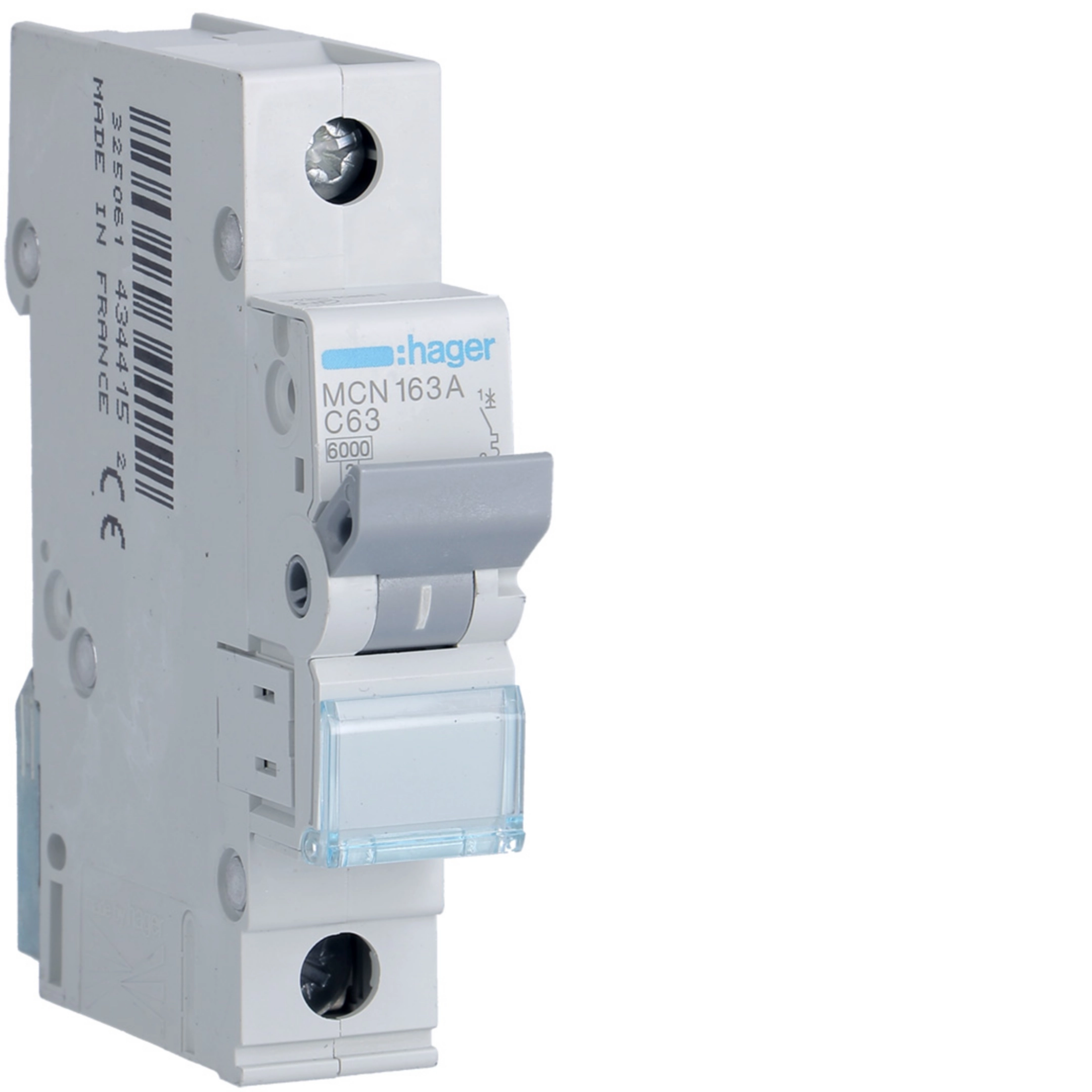

Hager NCN163A 63 A C-curve breaker 1-pole 6/10 kA IP20

Hager · Hager

HAGER 63A 10K 1P MCB C TY

KEW code: MCN163A
Brand: Hager
Manufacturer: Hager
MPN: NCN163A
Category: Distribution
Specification: - Rated current a: 63. - Curve: C. - Poles: 1P. - Modules: 1. - Icn ka: 6. - Icu ka: 10. - Ue v: 230-400. - Ui v: 500. - Uimp v: 4000. - Frequency hz: 50-60. - IP rating: IP20. - Dimensions: height 83 mm, width 17.5 mm, depth 70 mm. - Connection: top Screw terminal, bottom biconnect. - Operating temperature c: -25 to 70. - Power loss w: 1.63.
Feature: Single-pole C-curve MCB
Feature: 63A rated current
Feature: 6kA breaking capacity at 230 V AC
Feature: 1 module wide
