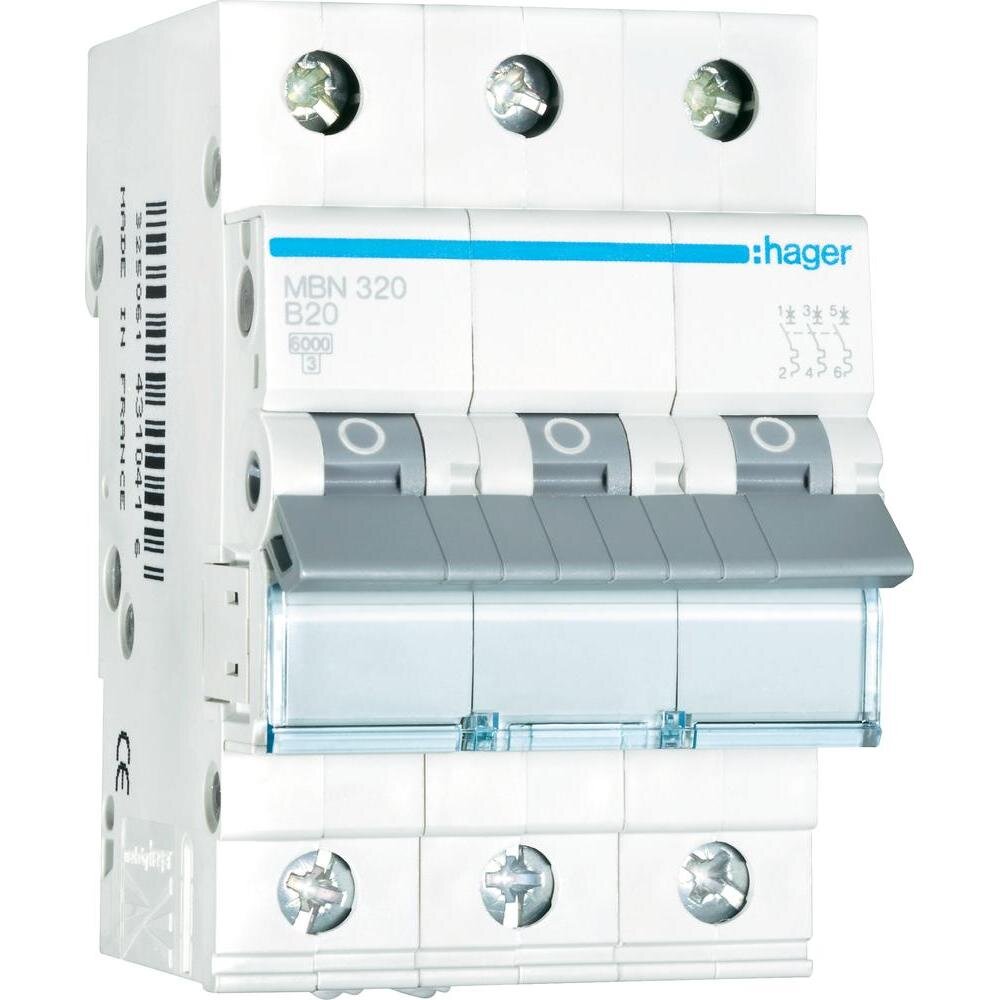

Hager 20 A three-pole B-curve MCB, 6/10 kA

Hager · Hager

HAGER 20A TP MCB TYPE B.

KEW code: MBN320A
Brand: Hager
Manufacturer: Hager
MPN: MBN320A
Category: Distribution
Specification: - Rated current a: 20. - Curve: B. - Poles: 3P. - Modules: 3. - Icn ka: 6. - Icu ka: 10. - Ue v: 230-400. - Ui v: 500. - Uimp v: 4000. - Frequency hz: 50-60. - IP rating: IP20. - Dimensions: height 83 mm, width 52.5 mm, depth 70 mm. - Connection: top Screw terminal, bottom biconnect. - Operating temperature c: -25 to 70. - Power loss w: 8.9.
Feature: Three-pole B-curve MCB
Feature: 20A rated current
Feature: 6kA breaking capacity at 230 V AC
Feature: 3 module width
