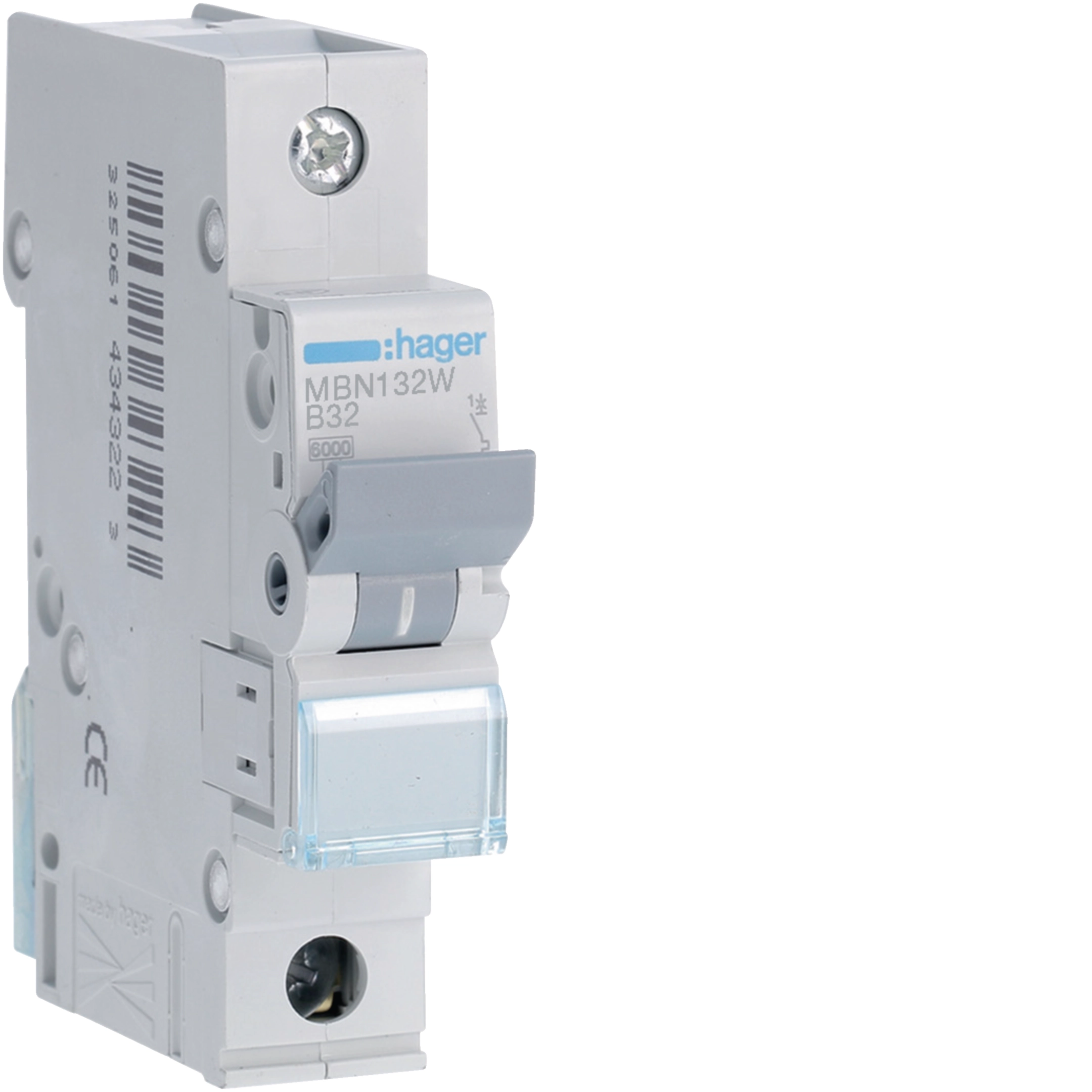

Hager 32 A single-pole B-curve MCB, 6/10 kA
Hager · Hager
Single-pole Hager miniature circuit breaker for B-curve protection on low-voltage final circuits. The 32A rating and 6kA breaking capacity suit compact board installations.
- KEW code
- MBN132W
- Brand
- Hager
- Manufacturer
- Hager
- MPN
- MBN132W
- Category
- Distribution
- Specification
- - Rated current a: 32. - Curve: B. - Poles: 1P. - Modules: 1. - Icn ka: 6. - Icu ka: 10. - Ue v: 230-400. - Ui v: 500. - Uimp v: 4000. - Frequency hz: 50-60. - IP rating: IP20. - Dimensions: height 83 mm, width 17.5 mm, depth 70 mm. - Connection: top Screw terminal, bottom biconnect. - Operating temperature c: -25 to 70. - Power loss w: 4.4.
- Feature
- Single-pole B-curve MCB
- Feature
- 32A rated current
- Feature
- 6kA breaking capacity at 230 V AC
- Feature
- 1 module wide
