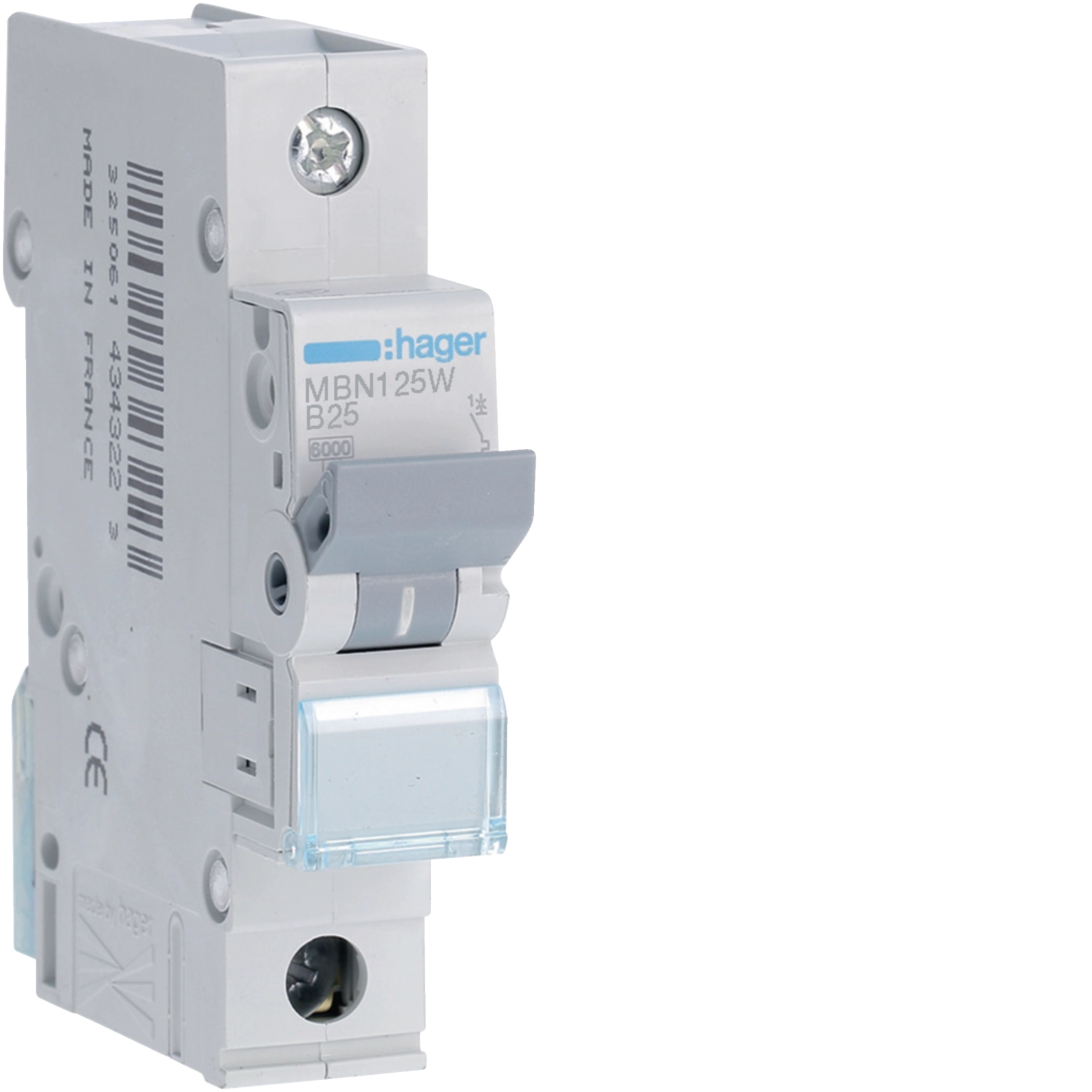

Hager 25 A single-pole B-curve MCB, 6/10 kA, IP20

Hager · Hager

HAGER 25A IP MCB B TYPE

KEW code: MBN125W
Brand: Hager
Manufacturer: Hager
MPN: MBN125W
Category: Distribution
Specification: - Rated current a: 25. - Curve: B. - Poles: 1P. - Modules: 1. - Icn ka: 6. - Icu ka: 10. - Ue v: 230-400. - Ui v: 500. - Uimp v: 4000. - Frequency hz: 50-60. - IP rating: IP20. - Dimensions: height 83 mm, width 17.5 mm, depth 70 mm. - Connection: top Screw terminal, bottom biconnect. - Operating temperature c: -25 to 70. - Power loss w: 3.
Feature: Single-pole B-curve MCB
Feature: 25A rated current
Feature: 6kA breaking capacity at 230 V AC
Feature: 1 module wide
