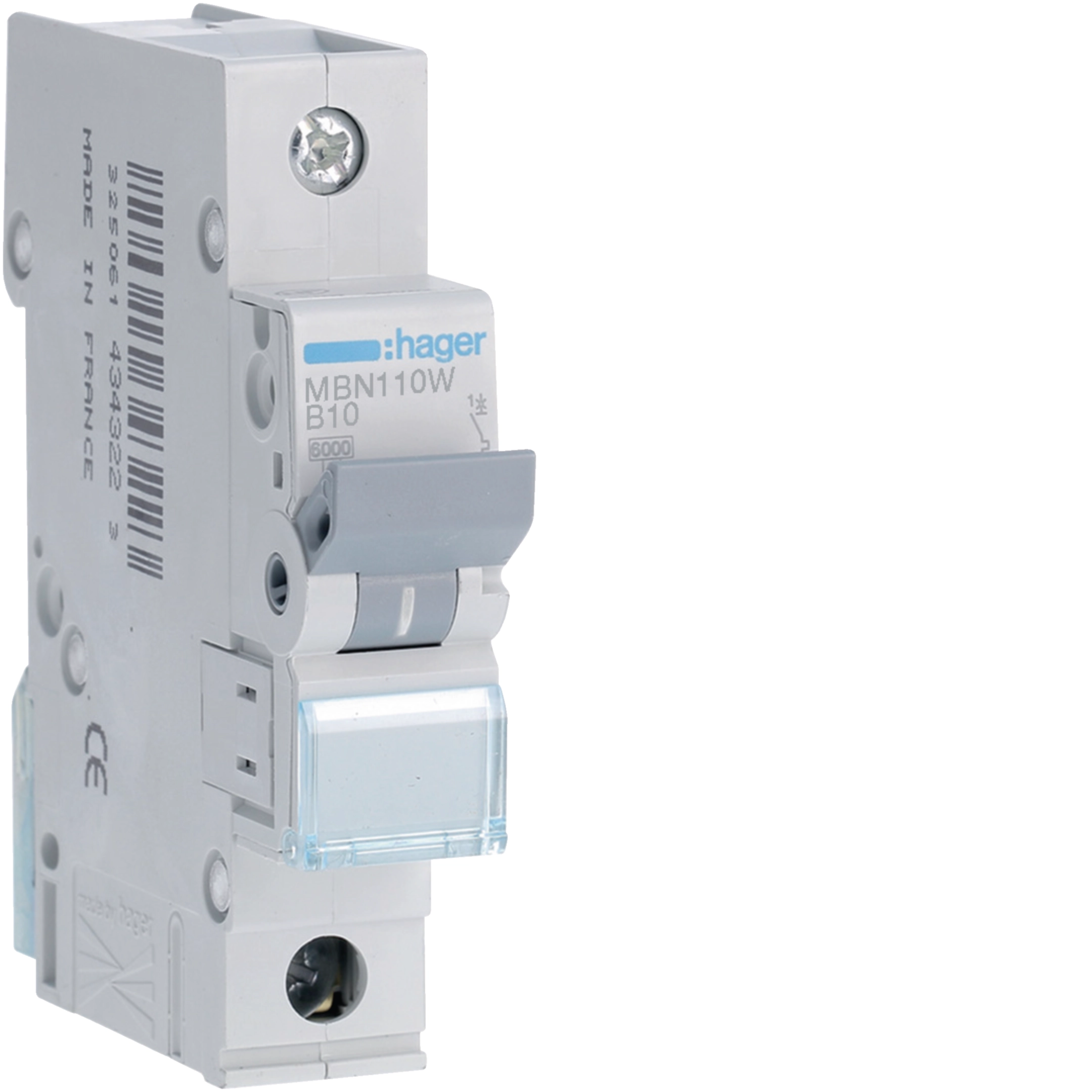

Hager 10 A single-pole B-curve MCB, 6 kA, IP20
Hager · Hager
HAGER 10A 1P MCB 6K B TYP
- KEW code
- MBN110W
- Brand
- Hager
- Manufacturer
- Hager
- MPN
- MBN110W
- Category
- Distribution
- Specification
- - Rated current a: 10. - Poles: 1. - Curve: B. - Modules: 1. - Icn ka: 6. - Icu ka: 6. - Operational voltage v: 230, 400. - Insulation voltage v: 500. - Impulse withstand v: 4000. - Frequency hz: 50, 60. - IP rating: IP20. - Grid distance mm: 35. - Conductor range: massive 1-35 mm², flexible 1-25 mm². - Operating temperature c: -25, 70. - Dimensions: height 83 mm, width 17.5 mm, depth 70 mm.
- Feature
- 1P, B curve
- Feature
- 10 A rated current
- Feature
- 6 kA breaking capacity
- Feature
- 1 module wide
- Feature
- 230 to 400 V operational range
- Feature
- IP20 protection
